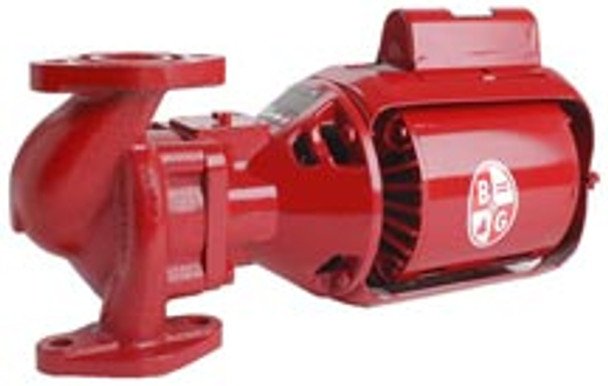

Bell & Gossett 102210 Series HV NFI Circulator Pump

102210 Bell & Gossett HV NFI Circulator Pump. The Bell & Gossett Series 100 pumps are the pumps of choice for hydronic heating and domestic hot water circulation. Series 100’s three-piece, oil lubricated design provides for easy field service with bearings, shaft and seal all housed in an assembly which can be easily repaired or replaced. The Model HV NFI 102210 is oil lubricated with a 1/6 HP, 1725 RPM, 115v single phase motor.

Bell & Gossett Model:

HV NFI

Bell & Gossett Part Number:

102210

Material:

Cast Iron

Voltage:

115v

Max Pressure:

125 psi

Horse Power:

1/6

Connection Size:

1″, 1-14″, 1-1/2″,

Flow Range (gallons per minute):

0-40

Max Flow (gallons per minute):

40

Head Range (FT):

0-12

Max Head (FT):

12

Hertz:

60

Phase:

Single

RPM:

1725

Max Temp (F):

225*F

Connection Type:

Flanged
