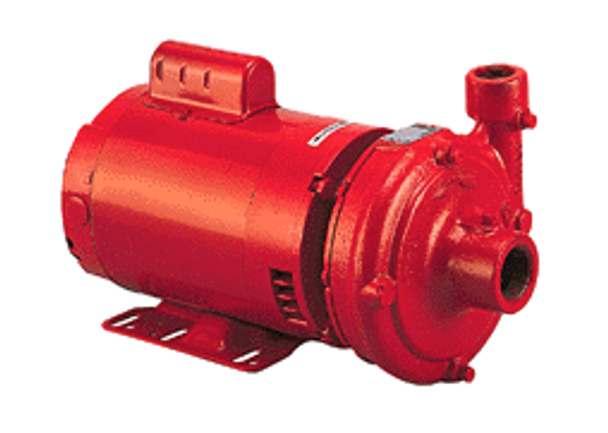

Bell & Gossett 168023 Series 1535 – 352S – 1/2HP Pump

The Bell & Gossett 1535 foot-mounted, end-suction, close-coupled pumps are available in 1” through 1-1/2” sizes. There are several motor sizes 1/3 to 5 HP at 3500 RPM and are available in bronze-fitted construction with flows to 240 GPM at 115 feet. This back-pullout pump offers ease of service in a close-coupled design. The pump can be mounted vertically or horizontally to provide maximum flexibility. Ball bearing design and standard internally flushed mechanical seal provide long, dependable service.

Series:

1535

Part Number:

168023

Model:

352S

Connection Type:

1″ x 1-1/4″

Impeller Diameter:

4″

Material:

Cast Iron

Motor Phase:

Single

Horsepower:

1/2 HP

RPM:

3500

Hertz:

60Hz

Voltage:

115/230v

Max Temperature:

225*F
