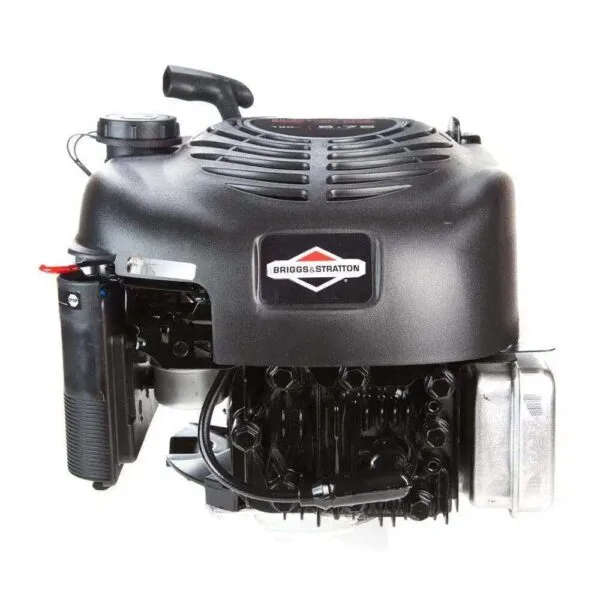

Briggs Stratton 126M02 1005 F1 190cc 6.75 Gross Torque Engine

Briggs Stratton 126M02 1005 F1 190cc 6.75 Gross Torque Engine

BRAND
Briggs Stratton

MODEL NUMBER
126M02-1005-F1

REPLACES MODELS
121K02-0113-E1, 121K02-0115-E1, 121K02-0116-B1, 121K02-0116-E1, 121K02-0349-E1, 121K02-0355-E1, 121K02-0410-E1, 121K02-0411-E1, 122K02-0137-E1, 122K02-0138-E1, 123702-0151-01, 123702-0154-01, 124702-0205-01, 124702-0207-01, 124L02-0124-F1, 124L02-0134-F1, 124L02-0530-F1, 126L02-0126-F1, 126L02-1005-F1, 127802-1916-D1, 127802-1953-B1, 127802-1953-D1, 127802-1953-E1, 127802-2319-B1, 127802-2319-D1, 127802-2319-E1, 128802-0912-01, 128802-1906-B1, 128802-2015-B1, 128802-2015-E1, 128802-2046-B1, 128802-2047-B1, 128802-2318-D1, 128802-2325-D1, 128802-2395-E1, 128802-2643-B1, 128802-3135-B1, 128802-3135-E1, 128812-3112-D1, 128812-3112-D2, 12E802-1115-01, 12F702-1771-E1, 12F702-1855-B1, 12F702-1855-E1, 12F702-1866-B1, 12F702-1866-E1, 12F702-1870-B1, 12F702-1870-D1, 12Q802-0120-D1, 12V802-1734-B1, 125K02-0005-B1, 125K02-0005-E1, 123K02-0005-E1, 123K02-0005-B1, 126T02-0005-B1

WARRANTY
2 Years

SHIPPING WEIGHT
30

DISPLACEMENT
190cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Vertical

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
7/8″ x 1-13/16″

CRANKSHAFT LENGTH
1-13/16″

CRANKSHAFT END TAPPED SIZE
3/8 – 24

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Plain PTO

CYLINDERS
1

CYLINDER BORE TYPE
Aluminum Alloy

AIR CLEANER TYPE
Dual Element

FUEL TANK
Yes

FUEL PUMP
No

OIL COOLER
No

OIL CAPACITY
20

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
5 Position

MAX RPM
3700

CHARGING SYSTEM
None

BOLT CIRCLE
8″

FLYWHEEL
Heavy
