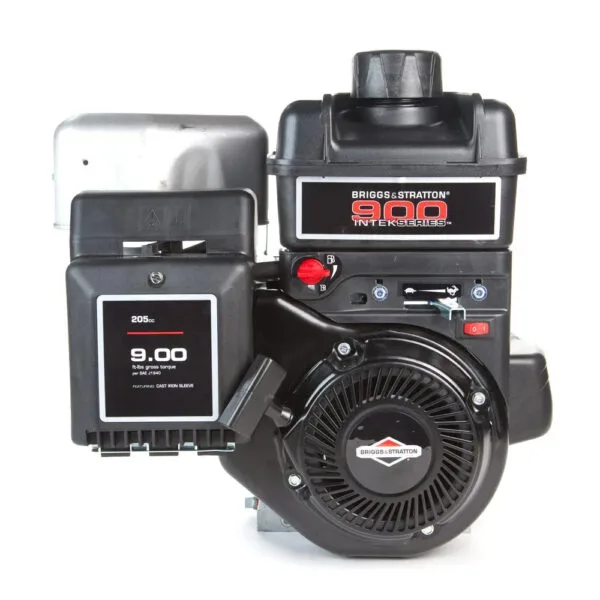

Briggs Stratton 12S437 0050 F8 Horizontal Engine

Briggs Stratton 12S437 0050 F8 Horizontal Engine

BRAND
Briggs Stratton

MODEL NUMBER
12S437-0050-F8

REPLACES MODELS
110415-0219-E1, 110417-0112-E1, 110437-0164-E1, 110437-0171-E1, 111437-0136-E1, 113437-0050-E1, 120317-0121-B1, 120317-0121-B8, 120317-0121-E1, 120415-0130-E1, 120417-0121-E1, 121237-0118-B1, 121237-0118-B8, 121237-0118-E1, 121237-0135-B1, 121237-0135-B8, 121237-0135-E1, 121237-0153-B8, 121307-0299-B1, 121307-0299-B8, 121317-0121-B1, 121317-0121-B8, 121317-0121-E1, 121317-0180-B1, 121317-0180-B8, 121317-0180-E1, 121317-0247-B1, 121317-0247-B8, 121317-0247-E1, 121336-0222-B1, 121336-0222-B8, 121337-0050-B1, 121337-0050-B8, 121337-0050-E1, 121337-0196-B1, 121337-0196-E1, 121337-0199-B8, 121337-0250-B1, 121337-0250-B8, 121337-0250-E1, 121337-0292-B1, 121337-0356-B1, 121337-0356-B8, 121337-0550-B8, 121415-0217-E1, 121417-0157-E1, 121417-0247-E1, 121437-0050-E1, 121437-0162-E1, 121437-0196-E1, 122007-0139-B8, 122037-0121-B1, 122037-0121-B8, 122037-0121-E1, 122037-0168-B8, 122037-0169-B8, 122037-0550-B8, 123337-0050-E1, 123435-0168-E1, 123436-0177-E1, 123437-0050-E1, 123437-0119-E1, 123437-0121-E1, 123437-0137-E1, 123437-0138-E1, 123437-0170-E1, 123437-0176-E1, 123437-0178-E1, 123457-0150-E1, 128437-0050-E1, 130206-0391-99, 130206-0400-99, 130206-0450-99, 130207-0025-99, 130207-0123-99, 130207-0402-99, 130207-0411-99, 130207-0725-99, 130207-0733-99, 130207-1525-01, 130207-1813-01, 130207-2112-01, 130207-2145-01, 130207-2145-02, 130207-2925-01, 130207-3083-01, 130207-3154-01, 130207-4025-01, 132235-0216-01, 132235-0266-01, 132237-0361-01, 132237-2150-01, 132237-2250-01, 132237-4050-01, 132237-4050-02, 132237-4050-03, 133237-0020-01, 133237-0021-01, 133237-0050-01, 133237-0129-01, 133237-0136-01, 121337-0050-B1, 121337-0550-B8, 121337-0050-B8, 133237-0350-A1, 133437-0350-A1, 133437-1050-B1, 133437-1050-E1, 133437-1050-E2, 133237-1050-E1, 135207-0625-A1, 135207-1025-E1

WARRANTY
2 Year

SHIPPING WEIGHT
40

DISPLACEMENT
205cc

STARTER TYPE
Electric with Recoil Backup

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
3/4″ x 2-27/64″

CRANKSHAFT DIAMETER
3/4″

CRANKSHAFT LENGTH
2-27/64″

CRANKSHAFT END TAPPED SIZE
5/16 – 24

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

CYLINDERS
1

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Dual Element

FUEL TANK
Yes

FUEL PUMP
No

OIL COOLER
No

OIL CAPACITY
20

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual

MAX RPM
3600

CHARGING SYSTEM
1.5

BOLT CIRCLE
3-5/8″

FLYWHEEL
Heavy

PTO HEIGHT
4 – 11/64
