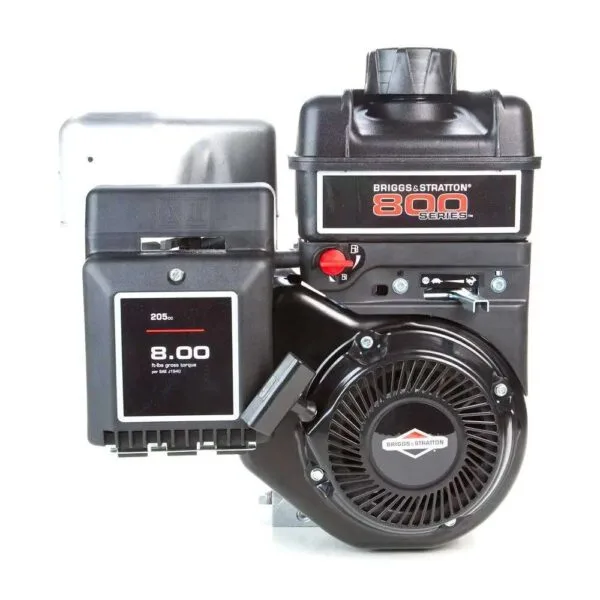

Briggs Stratton 12T132 0035 F8 Horizontal Engine

Briggs Stratton 12T132 0035 F8 Horizontal Engine
Briggs Stratton 12T132-0035-F8 horizontal 8.00 Gross Torque engine is 205cc and has a 5/8″ threaded crankshaft. Briggs Stratton 8.00 Gross Torque OHV engines are designed with reliable components like mechanical governors, float carburetors and Maxi-Clean air filters for superior performance and power.

BRAND
Briggs Stratton

MODEL NUMBER
12T132-0035-F8

REPLACES MODELS
100231-0255-99, 100231-0340-99, 100231-0569-99, 100231-0584-99, 100232-0035-99, 100232-0112-99, 100232-0182-99, 100232-0218-99, 100232-0337-99, 100232-0339-99, 100232-0346-99, 100232-0365-99, 100232-0439-99, 100232-0529-99, 100232-0551-99, 100232-0570-99, 100232-0592-99, 100232-0595-99, 100232-4010-13, 100232-4010-99, 110432-0035-E1, 110432-0045-E1, 110432-0224-E1, 111231-0161-99, 111231-0165-99, 111232-0036-99, 112231-0708-01, 112231-0811-01, 112232-0036-99, 112232-0536-01, 112232-1536-99, 120232-0535-B8, 120232-0535-B8, 126332-0535-B8, 130231-0156-99, 130231-0179-99, 130231-0182-99, 130231-0265-99, 130231-0348-99, 130231-0847-99, 130231-0865-99, 130231-0866-99, 130231-0936-99, 130231-0949-99, 130231-1060-99, 130231-1067-99, 130231-1171-99, 130231-1720-01, 130231-1720-02, 130231-1730-01, 130231-1760-01, 130231-1760-02, 130231-2161-01, 130232-0035-99, 130232-0112-99, 130232-0171-99, 130232-0178-99, 130232-0316-99, 130232-0337-99, 130232-0340-99, 130232-0341-99, 130232-0364-99, 130232-0382-99, 130232-0451-99, 130232-0453-99, 130232-0458-99, 130232-0503-99, 130232-0504-99, 130232-0558-99, 130232-0585-99, 130232-0620-99, 130232-0688-99, 130232-0718-99, 130232-0740-99, 130232-0843-99, 130232-0848-99, 130232-0852-99, 130232-0929-99, 130232-0950-99, 130232-0982-99, 130232-1000-99, 130232-1012-99, 130232-1015-99, 130232-1022-99, 130232-1028-99, 130232-1041-99, 130232-1053-99, 130232-1057-99, 130232-1065-99, 130232-1083-99, 130232-1086-99, 130232-1095-99, 130232-1100-99, 130232-1184-99, 130232-1202-99, 130232-1204-99, 130232-1535-01, 130232-1535-02, 130232-1535-03, 130232-1612-01, 130232-1632-01, 130232-1713-01, 126332-0035, 126332-0035-E1, 126332-0035-B1, 120232-0535, 120232-0535-B8, 126332-1035, 126332-1035-B8, 12T132-0035, 12T132-0035-F8, 126432-0035, 126432-0035-E1, 126332-1035

WARRANTY
2 Year Consumer / 90 Day Commercial

SHIPPING WEIGHT
40

DISPLACEMENT
205cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Threaded

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
5/8″-18 x 2-27/64″

CRANKSHAFT DIAMETER
5/8″ – 18

CRANKSHAFT LENGTH
2-27/64″

CRANKSHAFT END TAPPED SIZE
N/A

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

CYLINDERS
1

CYLINDER BORE TYPE
Aluminum Alloy

AIR CLEANER TYPE
Paper Element

FUEL TANK
Yes

FUEL PUMP
No

OIL COOLER
No

OIL CAPACITY
20

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual

MAX RPM
4000

CHARGING SYSTEM
None

BOLT CIRCLE
3-5/8″

FLYWHEEL
Heavy

PTO HEIGHT
4 – 11/64
