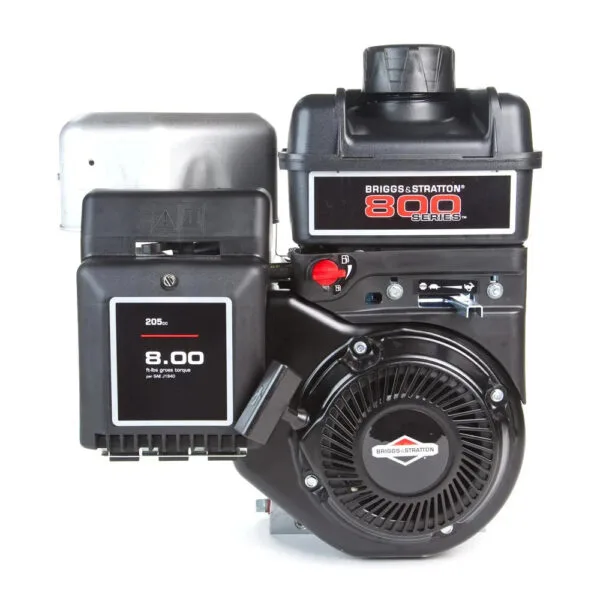

Briggs Stratton 12T152 0049 F8 Horizontal Engine

Briggs Stratton 12T152 0049 F8 Horizontal Engine
Briggs Stratton 12T152-0049-F8 horizontal 8.00 Gross Torque engine is 205cc and has a 3/4″ x 1-13/16″ crankshaft with 6:1 gear reduction. Briggs Stratton 8.00 Gross Torque engines are designed with reliable components such as Maxi-Clean air filters, mechanical governors and float carburetors for superior performance and power.

BRAND
Briggs Stratton

MODEL NUMBER
12T152-0049-F8

REPLACES MODELS
100251-0253-99, 100251-0268-99, 100251-0293-99, 100251-0307-99, 100251-0311-99, 100251-0336-99, 100252-0049-99, 100252-0116-99, 100252-0131-99, 100252-0132-99, 100252-0136-99, 100252-0156-99, 100252-0160-99, 100252-0170-99, 100252-0176-99, 100252-0185-99, 100252-0194-99, 100252-0210-99, 100252-0224-99, 100252-0236-99, 100252-0242-99, 100252-0259-99, 100252-0260-99, 100252-0261-99, 100252-0262-99, 100252-0273-99, 100252-0317-99, 100252-0335-99, 100252-0338-99, 100252-0344-99, 100252-0373-99, 100252-0402-99, 100252-0419-99, 100252-0430-99, 100252-0442-99, 100252-0468-99, 100252-0495-99, 100252-0508-99, 100252-0525-99, 100252-0526-99, 100252-0535-99, 100252-0552-99, 100252-0555-99, 100252-0562-99, 100252-0567-99, 100252-0571-99, 100252-0585-99, 100252-4010-17, 100252-4010-95, 100252-4011-03, 100252-4011-11, 100252-4011-13, 100252-4011-14, 100252-4011-15, 110452-0049-E1, 110452-0111-E1, 110452-0113-E1, 112252-0049-99, 112252-0116-99, 112252-0549-01, 112252-0549-02, 112252-0549-03, 112252-0549-04, 112252-0616-01, 112252-0636-01, 112252-0670-01, 112252-0704-01, 112252-0813-01, 112252-0841-01, 112252-1549-01, 112252-4049-01, 112252-4049-02, 112252-4049-03, 112252-4049-04, 120252-0111-E1, 120252-0112-B8, 120252-0135-B8, 120252-0140-B8, 120252-0549-B8, 130251-0202-99, 130251-0416-99, 130251-0519-99, 130251-1079-99, 130251-1161-99, 130252-0049-99, 130252-0116-99, 130252-0120-99, 130252-0193-99, 130252-0322-99, 130252-0325-99, 130252-0327-99, 130252-0412-99, 130252-0443-99, 130252-0462-99, 130252-0481-99, 130252-0514-99, 130252-0551-99, 130252-0562-99, 130252-0563-99, 130252-0566-99, 126352-0049-B1, 126352-0049-B2, 126352-0049-B8, 126352-0049-E1, 126352-0049-E2, 126352-0113-B1, 126352-0113-B8, 126352-0113-E1, 126352-0138-B1, 126352-0138-B8, 126352-0302-B1, 126352-0400-B1, 126352-0400-B8, 126352-0549-B1, 126352-0549-B8, 126352-1049-B8, 126452-0049-E1, 126452-0049-E2, 126452-0113-E1, 135252-0049-01, 135252-0049-03, 135252-0049-04, 135252-0155-01, 135252-0243-01, 135252-0277-01, 135252-0649-A1, 135252-1049-E1, 135252-1049-E3, 135252-1155-E1, 126352-1049

WARRANTY
2 Year

SHIPPING WEIGHT
45

DISPLACEMENT
205cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight, Gear Reduction

FUEL SYSTEM
Gasoline

GEAR REDUCTION
6:01

CRANKSHAFT DIMENSIONS
3/4″ x 2″

CRANKSHAFT DIAMETER
3/4″

CRANKSHAFT LENGTH
2″

CRANKSHAFT END TAPPED SIZE
5/16 – 24

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

CYLINDERS
1

CYLINDER BORE TYPE
Aluminum Alloy

AIR CLEANER TYPE
Paper Element

FUEL TANK
Yes

FUEL PUMP
No

OIL COOLER
No

OIL CAPACITY
20

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual

MAX RPM
3600

CHARGING SYSTEM
None

BOLT CIRCLE
3-5/8″

FLYWHEEL
Heavy

PTO HEIGHT
4 – 11/64
