Briggs Stratton 130G32 0022 F1 horizontal Engine

Briggs Stratton 130G32 0022 F1 horizontal Engine

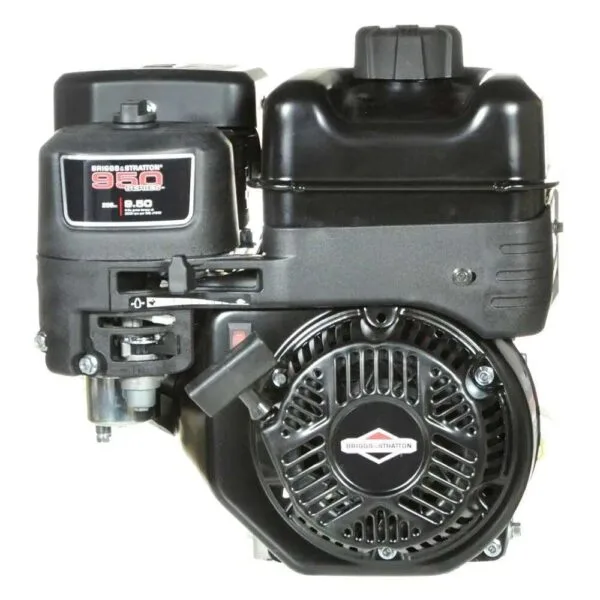

Briggs Stratton 130G32-0022-F1 horizontal OHV 950 Series engine is 208cc and puts out 9.50 gross torque. The single-cylinder utility engine has a 3/4″ x 2.420″ crankshaft. It is recoil start and has a standard Lo-Tone muffler. This engine model is not for use on leaf blowers/vac or chipper shredders; instead use model 13L332-0036-F8.

BRAND
Briggs Stratton

MODEL NUMBER
130G32-0022-F1

REPLACES MODELS
12S432-0036-F8, 12S432-0036

WARRANTY
2 Year

SHIPPING WEIGHT
35

DISPLACEMENT
208cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
3/4″ x 2.42″

CRANKSHAFT DIAMETER
3/4″

CRANKSHAFT LENGTH
2.42″

CRANKSHAFT END TAPPED SIZE
5/16 – 24

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

CYLINDERS
1

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Dual Element

FUEL TANK
Yes

FUEL PUMP
No

OIL COOLER
No

OIL CAPACITY
20

LOW OIL ALERT
No

LOW OIL SHUTDOWN
Yes

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Bowl

CHOKE CONTROL
Manual

MAX RPM
3300

CHARGING SYSTEM
None

BOLT CIRCLE
3-5/8″

FLYWHEEL
Heavy

PTO HEIGHT
4 – 11/64
