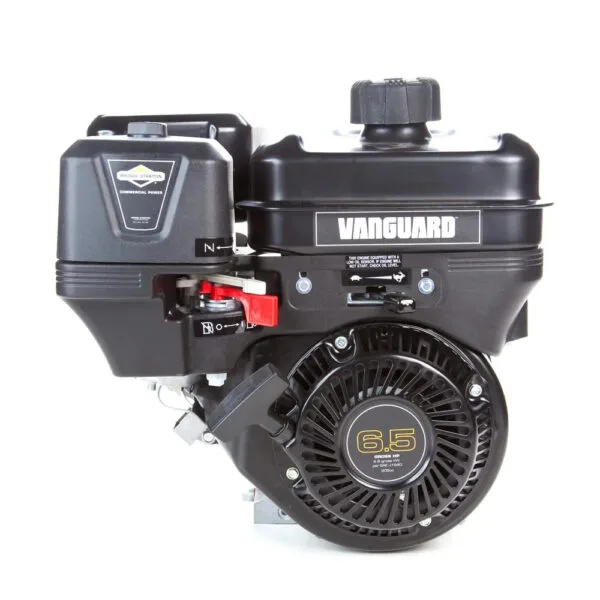

Briggs Stratton 13L332 0036 F8 Horizontal Vanguard engine

Briggs Stratton 13L332 0036 F8 Horizontal Vanguard engine
Briggs Stratton 13L332-0036-F8 Horizontal Vanguard engine is 205cc and puts out 6.5 HP. This OHV single-cylinder Vanguard has a 3/4″ x 2-27/64″ crankshaft. The engine has a recoil starter and includes a muffler.

BRAND
Briggs Stratton

MODEL NUMBER
13L332-0036-F8

WARRANTY
3 Year Consumer & Commercial

SHIPPING WEIGHT
45

DISPLACEMENT
205cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
3/4″ x 2-7/16″

CRANKSHAFT DIAMETER
3/4″

CRANKSHAFT LENGTH
2-7/16″

CRANKSHAFT END TAPPED SIZE
5/16 – 24

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Ball

CYLINDERS
1

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Cartridge with Pre Filter

FUEL TANK
Yes

FUEL PUMP
No

OIL COOLER
No

OIL CAPACITY
20

LOW OIL ALERT
Yes

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual

MAX RPM
3800

CHARGING SYSTEM
None

BOLT CIRCLE
3 -5/8″

FLYWHEEL
Heavy

PTO HEIGHT
4 – 11/64
