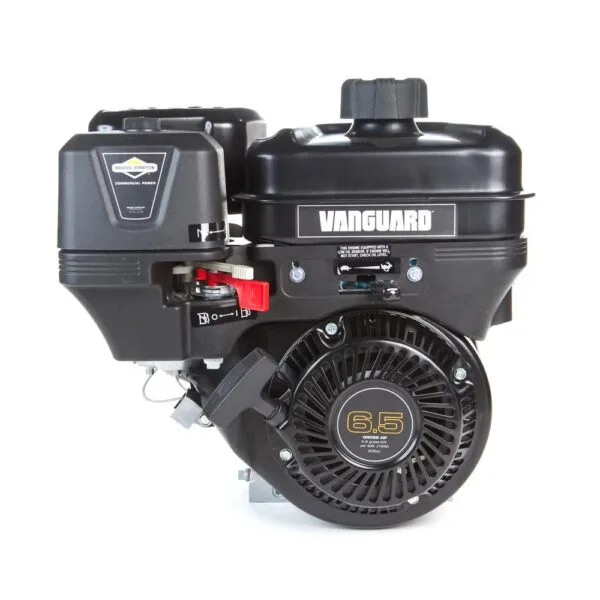

Briggs Stratton 13L352 0049 F8 Horizontal Engine

Briggs Stratton 13L352 0049 F8 Horizontal Engine
Briggs Stratton 13L352-0049-F8 horizontal Vanguard engine is 205cc and puts out 6.5 HP (maximum horsepower). This Vanguard has a 3/4″ x 1-13/16″ crankshaft with 6:1 counter-clockwise gear reduction ratio.

BRAND
Briggs Stratton

MODEL NUMBER
13L352-0049-F8

WARRANTY
3 Year

SHIPPING WEIGHT
50

DISPLACEMENT
205cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight, Gear Reduction

FUEL SYSTEM
Gasoline

GEAR REDUCTION
6:01

CRANKSHAFT DIMENSIONS
3/4″ x 2″

CRANKSHAFT DIAMETER
3/4″

CRANKSHAFT LENGTH
2″

CRANKSHAFT END TAPPED SIZE
5/16 – 24

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Ball

CYLINDERS
1

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Cartridge with Pre Filter

FUEL TANK
Yes

FUEL PUMP
No

OIL COOLER
No

OIL CAPACITY
20

LOW OIL ALERT
Yes

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual

MAX RPM
3600

CHARGING SYSTEM
None

BOLT CIRCLE
3-5/8″

FLYWHEEL
Heavy

PTO HEIGHT
4 – 11/64
