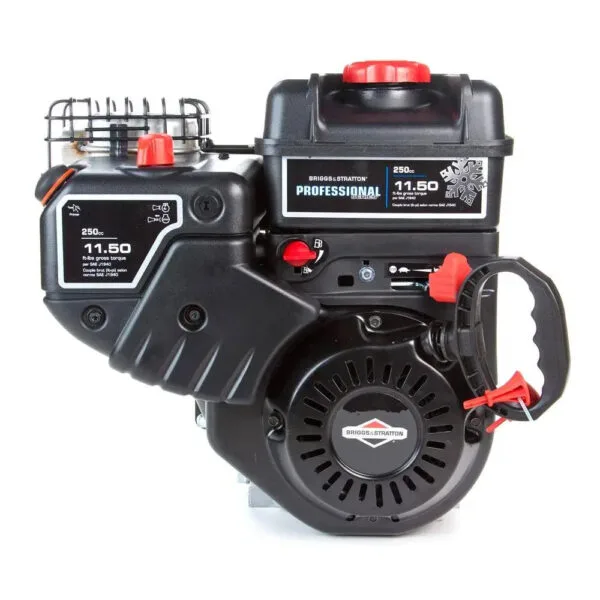

Briggs Stratton 15C104 3022 F8 Snow Engine

Briggs Stratton 15C104 3022 F8 Snow Engine
Briggs Stratton 15C104-3022-F8 horizontal Professional Series Snow engine is 250cc and puts out 11.5 gross torque. This snow engine has a 7/8″ x 2-9/32″ double step crankshaft (3/8-24 tapped) and is equipped with a 110V AC electric starter and 3A DC / 60W AC alternator.

BRAND
Briggs Stratton

MODEL NUMBER
15C104-3022-F8

WARRANTY
2 Year

SHIPPING WEIGHT
65

DISPLACEMENT
250cc

STARTER TYPE
Electric with Recoil w/ Mit Grip Backup

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

CRANKSHAFT DIMENSIONS
7/8″ x 2-25/32″

CRANKSHAFT DIAMETER
7/8″

CRANKSHAFT LENGTH
2-25/32″

CRANKSHAFT END TAPPED SIZE
3/8 – 24

CRANKSHAFT KEYWAY WIDTH
3/16″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Plain PTO

CYLINDERS
1

CYLINDER BORE TYPE
Aluminum Alloy

FUEL TANK
Yes

FUEL PUMP
No

OIL CAPACITY
20

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual

MAX RPM
3600

CHARGING SYSTEM
3

FLYWHEEL
Heavy

PTO HEIGHT
4 – 11/64
