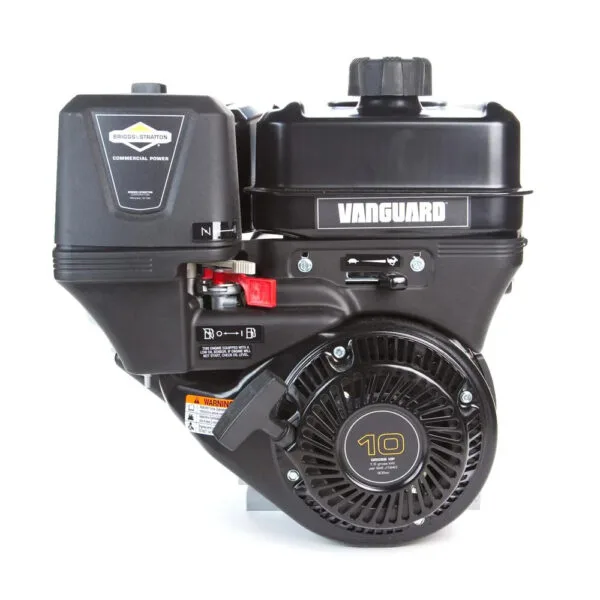

Briggs Stratton 19L232 0036 F1 Horizontal Engine

Briggs Stratton 19L232 0036 F1 Horizontal Engine
Briggs Stratton 19L232-0036-F1 horizontal Vanguard engine is 305cc and puts out 10 HP (maximum horsepower). This Vanguard has a 1″ x 2-29/32″ crankshaft with a 1/4″ keyway.

BRAND
Briggs Stratton

MODEL NUMBER
19L232-0036-F1

WARRANTY
3 Year Consumer & Commercial

SHIPPING WEIGHT
55

DISPLACEMENT
305cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
1″ x 2-29/32″

CRANKSHAFT LENGTH
2-29/32″

CRANKSHAFT END TAPPED SIZE
3/8 – 24

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Ball

CYLINDERS
1

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Cartridge with Pre Filter

FUEL TANK
Yes

FUEL PUMP
No

OIL COOLER
No

OIL CAPACITY
28

LOW OIL ALERT
Yes

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual

MAX RPM
3600

CHARGING SYSTEM
None

BOLT CIRCLE
3-5/8″, 5, 6-1/2

FLYWHEEL
Heavy

PTO HEIGHT
4 – 11/64
