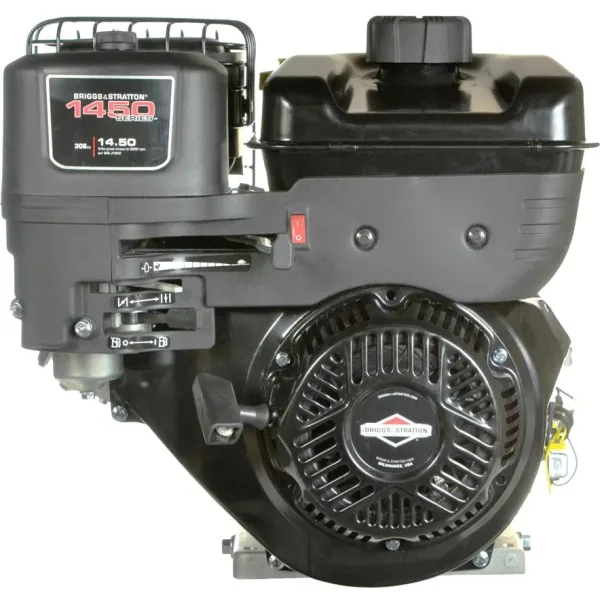

Briggs Stratton 19N132 0035 F1 306cc 14.5 Gross Torque OHV Engine

Briggs Stratton 19N132 0035 F1 306cc 14.5 Gross Torque OHV Engine
Briggs Stratton 19N132-0035-F1 horizontal 1150 Series engine is 306cc and puts out 14.5 gross torque. The single-cylinder OHV engine has a 1″ x 3-31/64″ crankshaft.

BRAND
Briggs Stratton

MODEL NUMBER
19N132-0035-F1

REPLACES MODELS
161432-0023-01, 161432-0023-03, 161432-0023-04, 161432-0024-01, 161432-0024-02, 161432-0031-01, 161432-0111-01, 161432-0113-01, 161432-0122-99, 161432-0128-99, 161432-0133-01, 190432-5535, 192432-1008-E1, 195431-0110-01, 195431-0110-02, 195431-0141-01, 195431-0142-01, 195431-0143-01, 195431-0143-02, 195431-0153-01, 195431-0174-01, 195431-0187-01, 195431-0187-02, 195431-0198-01, 195431-0210-01, 195431-0210-02, 195431-0210-03, 195431-0210-04, 195431-0210-05, 195431-0210-06, 195431-0230-01, 195431-0237-01, 195431-0245-01, 195431-0267-01, 195431-0303-01, 195431-0303-02, 195431-0601-01, 195431-0622-99, 195431-0642-99, 195431-0670-01, 195431-0701-99, 195431-0743-01, 195431-0754-01, 195431-0796-01, 195431-0832-01, 195431-0863-01, 195431-0876-01, 195431-0901-01, 195431-2034-01, 195431-2034-02, 195431-2134-01, 195431-2234-99, 195432-0111-01, 195432-0131-01, 195432-0137-01, 195432-0138-01, 195432-0139-01, 195432-0140-01, 195432-0144-01, 195432-0147-01, 195432-0147-02, 195432-0148-01, 195432-0152-01, 195432-0155-01, 195432-0157-01, 195432-0159-01, 195432-0161-01, 195432-0161-02, 195432-0162-01, 195432-0177-01, 195432-0178-01, 195432-0183-01, 195432-0190-01, 195432-0200-01, 195432-0200-02, 195432-0201-01, 195432-0204-01, 195432-0212-01, 195432-0216-01, 195432-0216-02, 195432-0216-03, 195432-0221-01, 195432-0222-01, 195432-0234-01, 195432-0235-01, 195432-0238-01, 195432-0249-01, 195432-0255-01, 195432-0258-01, 195432-0260-01, 195432-0270-01, 195432-0271-01, 195432-0272-01, 195432-0272-02, 195432-0273-01, 195432-0277-01, 195432-0278-01, 195432-0280-01, 195432-0285-01, 195432-0286-01, 195432-0288-01, 196432-1035-E1, 196432-1035-E4, 202332-0207-B1, 202332-0207-E9, 203432-0129-E1, 203432-0129-E9, 202432-0185-E9, 202432-0207-E9, 203432-0036-E1, 203432-0036-E2, 203432-0036-E9, 205432-0537-E9, 205332-0537, 20S232-0037, 161432-0023-01, 161432-0023-03, 161432-0023-04, 161432-0024-01, 161432-0024-02, 161432-0031-01, 161432-0111-01, 161432-0113-01, 161432-0122-99, 161432-0128-99, 161432-0133-01, 192432-1008-E1, 195431-0110-01, 195431-0110-02, 195431-0141-01, 195431-0142-01, 195431-0143-01, 195431-0143-02, 195431-0153-01, 195431-0174-01, 195431-0187-01, 195431-0187-02, 195431-0198-01, 195431-0210-01, 195431-0210-02, 195431-0210-03, 195431-0210-04, 195431-0210-05, 195431-0210-06, 195431-0230-01, 195431-0237-01, 195431-0245-01, 195431-0267-01, 195431-0303-01, 195431-0303-02, 195431-0601-01, 195431-0622-99, 195431-0642-99, 195431-0670-01, 195431-0701-99, 195431-0743-01, 195431-0754-01, 195431-0796-01, 195431-0832-01, 195431-0863-01, 195431-0876-01, 195431-0901-01, 195431-2034-01, 195431-2034-02, 195431-2134-01, 195431-2234-99, 195432-0111-01, 195432-0131-01, 195432-0137-01, 195432-0138-01, 195432-0139-01, 195432-0140-01, 195432-0144-01, 195432-0147-01, 195432-0147-02, 195432-0148-01, 195432-0152-01, 195432-0155-01, 195432-0157-01, 195432-0159-01, 195432-0161-01, 195432-0161-02, 195432-0162-01, 195432-0177-01, 195432-0178-01, 195432-0183-01, 195432-0190-01, 195432-0200-01, 195432-0200-02, 195432-0201-01, 195432-0204-01, 195432-0212-01, 195432-0216-01, 195432-0216-02, 195432-0216-03, 195432-0221-01, 195432-0222-01, 195432-0234-01, 195432-0235-01, 195432-0238-01, 195432-0249-01, 195432-0255-01, 195432-0258-01, 195432-0260-01, 195432-0270-01, 195432-0271-01, 195432-0272-01, 195432-0272-02, 195432-0273-01, 195432-0277-01, 195432-0278-01, 195432-0280-01, 195432-0285-01, 195432-0286-01, 195432-0288-01, 196432-1035-E1, 196432-1035-E4, 202332-0207-B1, 202332-0207-E9, 203432-0129-E1, 203432-0129-E9, 202432-0185-E9, 202432-0207-E9, 203432-0036-E1, 203432-0036-E2, 203432-0036-E9, 205432-0537-E9, 205332-0537, 203432-0036, 203432-0036-E1, 203432-0036-E2, 203432-0036-E9, 206432-0036, 206432-0036-E1, 206432-0036-E9, 206432-0036-E9, 201432-0036, 201432-0036-E1, 20T232-0036-F1, 20S232-0037-F1

WARRANTY
2 Year Consumer / 1 Year Commercial

SHIPPING WEIGHT
65

DISPLACEMENT
306cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
1″ x 3-21/32″

CRANKSHAFT LENGTH
3-21/32″

CRANKSHAFT END TAPPED SIZE
7/16 – 20

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Ball

CYLINDERS
1

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Dual Element

FUEL TANK
Yes

FUEL PUMP
No

OIL CAPACITY
1.16 qt

LOW OIL ALERT
Yes

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual

MAX RPM
3600

CHARGING SYSTEM
None

BOLT CIRCLE
3-5/8″, 5, 6-1/2

FLYWHEEL
Heavy

PTO HEIGHT
5.26″
