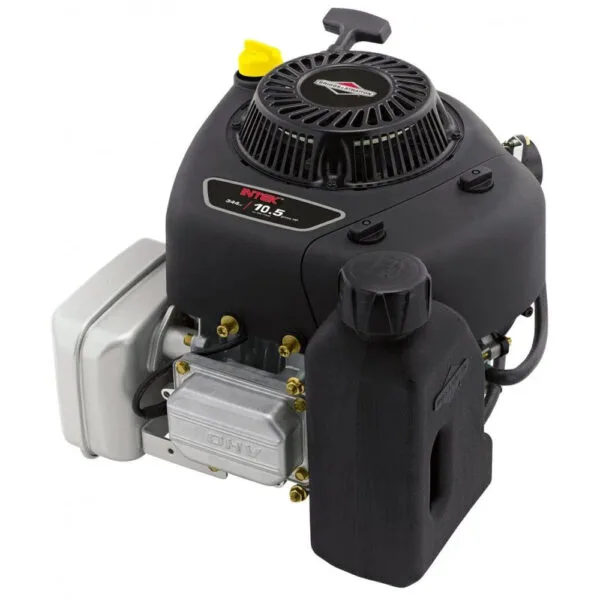

Briggs Stratton 21R707 0079 F1 Vertical Engine

Briggs Stratton 21R707 0079 F1 Vertical Engine

BRAND
Briggs Stratton

MODEL NUMBER
21R707-0079-F1

REPLACES MODELS
140705-0114-99, 140707-0119-99, 140707-0120-99, 141707-0119-99, 141707-0120-99, 141707-5015-30, 141707-5015-31, 170705-0614-99, 170705-0673-99, 170705-0683-99, 170705-1145-99, 170705-1164-99, 170705-1177-99, 170705-1202-99, 170705-1214-99, 170705-1614-99, 170707-0699-99, 170707-0731-99, 170707-1025-99, 170707-1026-99, 170707-1158-99, 170707-1165-99, 170707-1175-99, 170707-1206-99, 170707-1231-99, 170707-1246-99, 170707-1251-99, 170707-1259-99, 170707-1265-99, 170707-1525-99, 170707-1630-99, 170707-1651-99, 170707-2025-01, 170707-4004-99, 170707-5025-99, 170707-5134-99, 170707-5525-99, 170707-6011-01, 171705-0125-99, 190702-5812-01, 190705-0154-99, 190705-0175-99, 190705-0614-99, 190705-0637-99, 190705-0676-99, 190705-0678-99, 190705-0763-99, 190705-0792-99, 190705-0822-99, 190705-0847-99, 190705-0920-99, 190705-0928-99, 190705-1137-99, 190705-1154-99, 190705-1173-99, 190705-2114-01, 190705-5856-01, 190705-6007-01, 190707-0115-99, 190707-0132-99, 190707-0136-99, 190707-0148-99, 190707-0150-99, 190707-0151-99, 190707-0155-99, 190707-0159-99, 190707-0162-99, 190707-0164-99, 190707-0166-99, 190707-0167-99, 190707-0168-99, 190707-0169-99, 190707-0170-99, 190707-0176-99, 190707-0177-99, 190707-0178-99, 190707-0181-99, 190707-0182-99, 190707-0185-99, 190707-0190-99, 190707-0525-99, 190707-0615-99, 190707-0631-99, 190707-0635-99, 190707-0638-99, 190707-0654-99, 190707-0662-99, 190707-0671-99, 190707-0680-99, 190707-0685-99, 190707-0688-99, 190707-0692-99, 190707-0698-99, 190707-0702-99, 190707-0705-99, 190707-0715-99, 190707-0716-99, 190707-0724-99, 190707-0725-99, 190707-0736-99, 194707-4525-A1, 194707-4525-E1, 194707-4526-A1, 194707-4526-E1, 195707-4525-A1, 195707-4525-E1, 195707-4526-A1, 195707-4526-E1, 197707-1025-E1, 212907-0028-E1, 21A907-0154-E1, 21A907-0154-E9, 28B707-1025-E1, 215907-0028, 215907-0028-B1, 21B907-0028-B1 , 215907-0028, 219807-4028-F1, 219807-4025

WARRANTY
2 Years

SHIPPING WEIGHT
80

DISPLACEMENT
344cc

STARTER TYPE
Electric & Recoil

CRANKSHAFT ORIENTATION
Vertical

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
1″ x 3-5/32″

CRANKSHAFT LENGTH
3-5/32″

CRANKSHAFT END TAPPED SIZE
7/16 – 20

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Plain PTO

CYLINDERS
1

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Cartridge Type

FUEL TANK
Yes

FUEL PUMP
Yes

OIL COOLER
No

OIL CAPACITY
48

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Choke-A-matic

MAX RPM
3600

CHARGING SYSTEM
16

BOLT CIRCLE
10″

FLYWHEEL
Heavy
