Briggs Stratton 305442 0527 F1 Horizontal Engine

Briggs Stratton 305442 0527 F1 Horizontal Engine

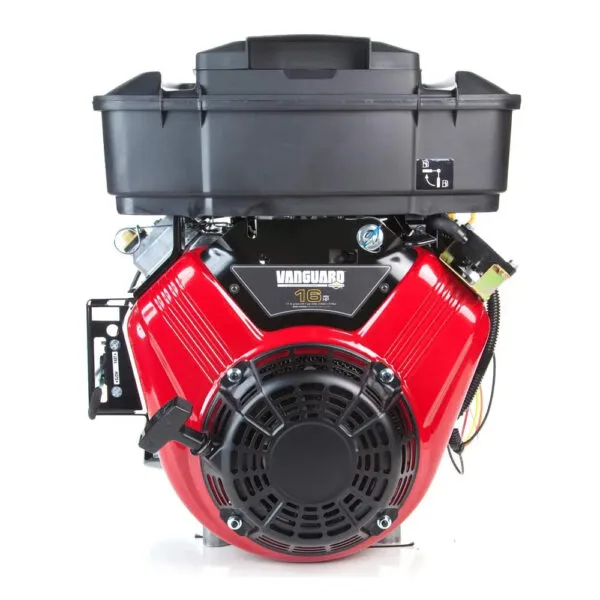

Briggs Stratton 305442-0527-F1 horizontal Vanguard engine is 479cc and puts out 16.0 HP (maximum horsepower). This V-Twin Vanguard has a 1″ x 3″ crankshaft with a 1/4″ keyway and comes equipped with a recoil starter and fuel tank.

BRAND
Briggs Stratton

MODEL NUMBER
305442-0527-F1

REPLACES MODELS
303442-1327-E1, 303442-1327-E9, 294442-1065-A2, 294442-1065-A1, 294442-1061-A1, 294442-1049-E1, 294442-1049-A1, 294442-1047-A2, 294442-1047-A1, 294442-1020-E9, 294442-1020-E1, 294442-1020-A1, 294442-1015-A1, 294442-0481-E1, 294442-0481-01, 294442-0457-01, 294442-0427-01, 294442-0370-02, 294442-0370-01, 294442-0365-02, 294442-0365-01, 294442-0361-01, 294442-0360-01, 294442-0347-02, 294442-0347-01, 294442-0315-01, 290446-0432-99, 290442-1206-A1, 290442-1205-A1, 290442-1191-A1, 290442-1161-99, 290442-1158-A1, 290442-1157-A1, 290442-1148-A1, 290442-1136-A1, 290442-1135-99, 290442-1134-99, 290442-1133-A1, 290442-1072-A1, 290442-1066-A1, 290442-0506-99, 290442-0505-01, 290442-0503-01, 290442-0461-99, 290442-0458-01, 290442-0457-01, 290442-0454-01, 290442-0449-99, 290442-0448-01, 290442-0438-99, 290442-0436-01, 290442-0433-01, 290442-0427-01, 290442-0426-01, 290442-0422-01, 290442-0405-99, 290442-0398-02, 290442-0398-01, 290442-0395-99, 290442-0391-01, 290442-0390-02, 290442-0390-01, 290442-0385-01, 290442-0372-01, 290442-0370-02, 290442-0370-01, 290442-0366-01, 290442-0362-99, 290442-0361-03, 290442-0361-01, 290442-0357-02, 290442-0357-01, 290442-0350-01, 290442-0347-05, 290442-0347-03, 290442-0347-02, 290442-0347-01, 290442-0340-02, 290442-0340-01, 290442-0330-99, 290442-0320-03, 290442-0320-01, 290442-0311-99, 290442-0307-01, 290442-0085-99, 290442-0070-02, 290442-0070-01, 290442-0062-02, 290442-0062-01, 290442-0061-03, 290442-0061-01, 290442-0057-02, 290442-0057-01, 290442-0047-02, 290442-0047-01, 290442-0040-02, 290442-0040-01, 290442-0034-99, 290442-0034-01, 290442-0031-99, 290442-0031-02, 290442-0031-01

WARRANTY
3 Year Consumer & Commercial

SHIPPING WEIGHT
89

DISPLACEMENT
479cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
1″ x 2-29/32″

CRANKSHAFT LENGTH
2-29/32″

CRANKSHAFT END TAPPED SIZE
3/8 – 24

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Ball

CYLINDERS
2

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Dual Element

FUEL TANK
Yes

FUEL PUMP
Yes

OIL COOLER
No

OIL CAPACITY
48

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual and Remote

MAX RPM
3600

CHARGING SYSTEM
None

BOLT CIRCLE
5, 6-1/2, 7-3/4

FLYWHEEL
Heavy

PTO HEIGHT
5 – 1/4
