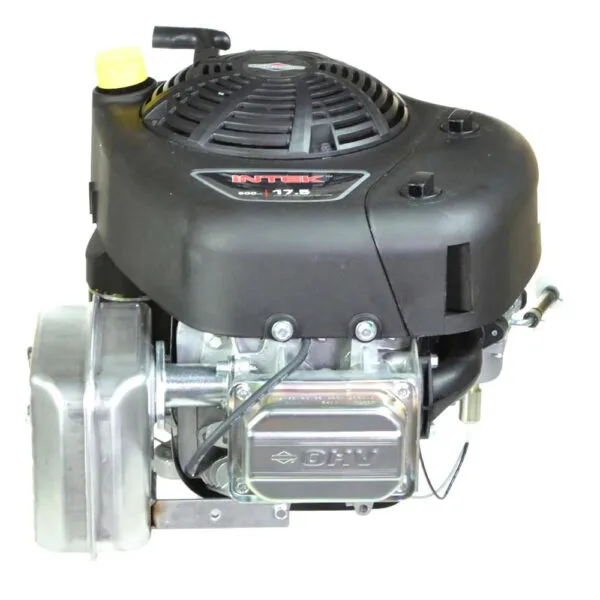

Briggs Stratton 31R907 0006 G1 500cc 17.5 Gross HP OHV Engine

Briggs Stratton 31R907 0006 G1 500cc 17.5 Gross HP OHV Engine

BRAND
Briggs Stratton

MODEL NUMBER
31R907-0006-G1

REPLACES MODELS
31C707-3005-G5, 31C707-3005, 31C707-0005-G1, 31B707-0005-E1, 287707-1235-E1, 287707-0249-01, 31C707-3005, 31C707-0005, 31B707-0005, 31C707-0005-01, 31C707-0005-E1, 31C707-0005-E2, 31C707-0005-E3, 31C707-0005-E4, 31C707-0005-E9, 31C707-0005-B1, 31C707-0005-B2, 31C707-0005-B3, 31C707-0005-B9, 31C707-0005-02, 31C707-0005-E7, 280H07-0005, 31B707-0005, 31C707-0005-G1, 31B707-0005-E1, 287707-1235-E1, 287707-0249-01

WARRANTY
2 Years

SHIPPING WEIGHT
82

DISPLACEMENT
500cc

STARTER TYPE
Electric with Recoil Backup

CRANKSHAFT ORIENTATION
Vertical

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
1″ x 3.157″

CRANKSHAFT LENGTH
3.157″

CRANKSHAFT END TAPPED SIZE
7/16 – 20

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Plain

CYLINDERS
1

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Cartridge Type

FUEL TANK
No

FUEL PUMP
No

OIL COOLER
No

OIL CAPACITY
48

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Choke-A-matic

MAX RPM
3300

CHARGING SYSTEM
9

BOLT CIRCLE
10″

FLYWHEEL
Heavy
