Briggs Stratton 356447 0050 G1 Horizontal Engine Replaces 356447 3077 G1

Briggs Stratton 356447 0050 G1 Horizontal Engine Replaces 356447 3077 G1

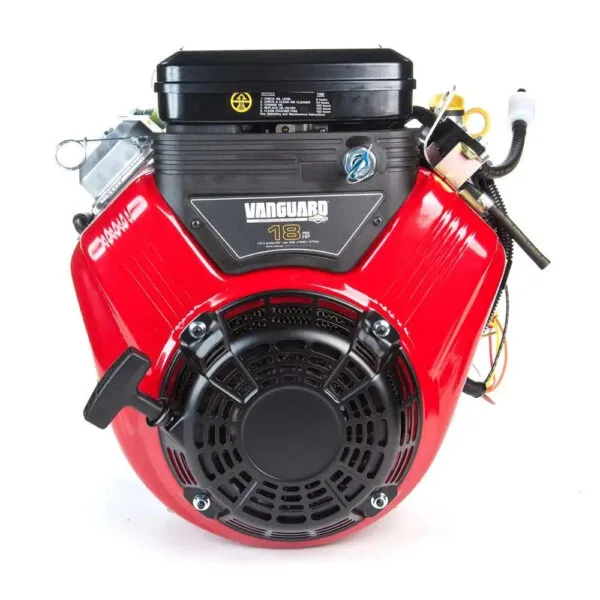

Briggs Stratton 356447-0050-G1 horizontal Vanguard engine is 570cc and puts out 18.0 HP (maximum horsepower). This Vanguard V-twin has a 1″ x 3-1/4″ threaded crankshaft and comes equipped with an electric starter with recoil back-up, 16-amp charging system, fuel pump and oil filter. Muffler and fuel tank are not included.

BRAND
Briggs Stratton

MODEL NUMBER
356447-0050-G1

REPLACES MODELS
356447-3077-G1, 356447-0077-E1, 356447-0077-G1, 356447-0189-G1, 356447-0189-E1, 356447-0171-G1, 356447-0171-E1, 350447-1377-E1, 350447-1110-E1, 350447-1080-E1, 350447-1080-A1, 350447-1077-E1, 350447-1077-A2, 350447-1077-A1, 350447-0080-01, 350447-0077-01, 350447-1080, 350442-1172-A1, 294447-0325-01

WARRANTY
3 Year Consumer & Commercial

SHIPPING WEIGHT
94

DISPLACEMENT
570cc

STARTER TYPE
Electric with Recoil Backup

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Threaded

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
1″-14 x 3-21/32″

CRANKSHAFT DIAMETER
1″-14

CRANKSHAFT LENGTH
3-21/32″

CRANKSHAFT END TAPPED SIZE
N/A

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Ball

CYLINDERS
2

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Dual Element

FUEL TANK
No

FUEL PUMP
Yes

OIL COOLER
No

OIL CAPACITY
48

LOW OIL ALERT
Yes

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual and Remote

MAX RPM
3600

CHARGING SYSTEM
16

BOLT CIRCLE
5, 6-1/2, 7-3/4

FLYWHEEL
Heavy

PTO HEIGHT
5 – 1/4
