Briggs Stratton 356447 0566 F1 Horizontal Engine

Briggs Stratton 356447 0566 F1 Horizontal Engine

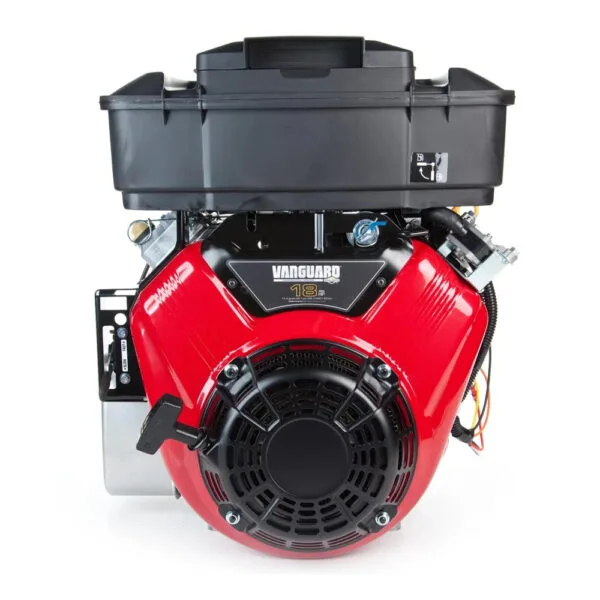

Briggs Stratton 356447-0566-F1 horizontal Vanguard is 570cc and puts out 18.0 HP (gross horsepower). This Vanguard has a 1″ x 2-29/32″ crankshaft. It features a recoil starter, a 12V electric gear drive starter with a 16A alternator, a fuel tank and a muffler.

BRAND
Briggs Stratton

MODEL NUMBER
356447-0566-F1

REPLACES MODELS
356447-0206-E9, 356447-0206-E1, 356447-0206-B1, 356447-0168-E9, 356447-0168-E1, 356447-0168-B1, 356447-0160-E9, 356447-0160-E1, 356447-0160-B1, 356447-0148-E9, 356447-0148-E1, 356447-0148-B1, 356447-0125-E9, 356447-0125-E1, 356447-0125-B1, 356447-0066-E9, 356447-0066-E1, 356447-0066-B1, 350447-1412-E9, 350447-1412-E1, 350447-1366-E9, 350447-1366-E1, 350447-1266-E9, 350447-1266-E1, 350447-1057-E1, 350447-1048-A2, 350447-1048-A1, 350447-0048-02, 350447-0048-01

WARRANTY
3 Year Consumer & Commercial

SHIPPING WEIGHT
105

DISPLACEMENT
570cc

STARTER TYPE
Electric with Recoil Backup

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
1″ x 2-29/32″

CRANKSHAFT LENGTH
2-29/32″

CRANKSHAFT END TAPPED SIZE
3/8 – 24

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Ball

CYLINDERS
2

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Dual Element

FUEL TANK
Yes

FUEL PUMP
Yes

OIL COOLER
No

OIL CAPACITY
48

LOW OIL ALERT
Yes

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual and Remote

MAX RPM
3600

CHARGING SYSTEM
16

BOLT CIRCLE
5, 6-1/2, 7-3/4

FLYWHEEL
Heavy

PTO HEIGHT
5 – 1/4
