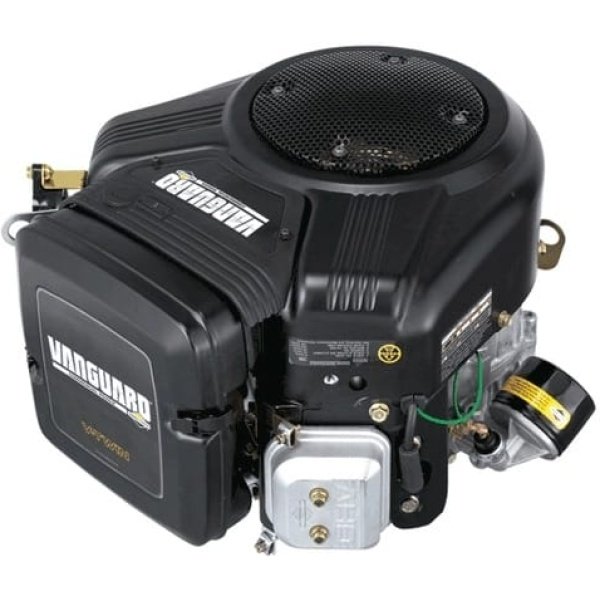

Briggs Stratton 356777 3034 G1 Vertical Engine

Briggs Stratton 356777 3034 G1 Vertical Engine Specs

BRAND
Briggs Stratton

MODEL NUMBER
356777-3034-G1

REPLACES MODELS
356777-0133-G1, 356777-0133-E1, 356777-0121-G1, 356777-0121-E1, 356777-0120-G1, 356777-0120-E1, 356777-0118-G1, 356777-0118-E1, 356777-0116-G1, 356777-0116-E1, 356777-0115-G1, 356777-0115-E1, 356777-0113-G1, 356777-0113-E1, 356777-0110-E1, 356777-0034-G1, 356777-0034-E1, 350777-1171-E1, 350777-1170-E1, 350777-1166-E1, 350777-1164-E1, 350777-1163-E1, 350777-1163-02, 350777-1163-01, 350777-1162-E1, 350777-1159-E1, 350777-1158-E1, 350777-1157-E1, 350777-1156-E1, 350777-1155-E1, 350777-1152-E1, 350777-1151-E1, 350777-1150-E1, 350777-1149-E1, 350777-1147-E1, 350777-1144-E1, 350777-1143-E1, 350777-1142-E1, 350777-1141-E1, 350777-1140-E1, 350777-1138-E1, 350777-1136-E2, 350777-1135-E1, 350777-1135-A1, 350777-1134-E2, 350777-1134-A2, 350777-1132-E1, 350777-1132-A1, 350777-1131-A1, 350777-1130-E1, 350777-1130-A1, 350777-1128-E1, 350777-1128-A1, 350777-1125-E1, 350777-1125-A1, 350777-1124-A1, 350777-1123-A1, 350777-1120-E1, 350777-1120-A1, 350777-1118-E1, 350777-1118-A1, 350777-1117-E1, 350777-1117-A1, 350777-1115-E1, 350777-1115-A1, 350777-1114-A1, 350777-1113-E1, 350777-1113-A1, 350777-1112-E1, 350777-1112-A1, 350777-1044-E2, 350777-1044-A2, 350777-1044-A1, 350777-1035-E1, 350777-1035-A1, 350777-1034-E3, 350777-1034-E1, 350777-1034-A1, 350777-0450-01, 350777-0125-01, 350777-0123-01, 350777-0120-01, 350777-0117-01, 350777-0116-01, 350777-0115-01, 350777-0114-01, 350777-0113-01, 350777-0110-01, 350777-0044-02, 350777-0044-01, 350777-0035-01, 350777-0034-02, 350777-0034-01, 350772-1045-E2, 350772-1045-A2, 350772-1045-A1, 350777-0034-02, 350777-0034-01, 350772-1045-E2, 350772-1045-A2, 350772-1045-A1, 356777-0034, 35677-0034-G1

WARRANTY
3 Years

SHIPPING WEIGHT
90

DISPLACEMENT
570cc

STARTER TYPE
Electric

CRANKSHAFT ORIENTATION
Vertical

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
1″ x 3-5/32″

CRANKSHAFT LENGTH
3-5/32″

CRANKSHAFT END TAPPED SIZE
7/16 – 20

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Steel Backed Aluminum Mag

CYLINDERS
2

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Dual Element

FUEL TANK
No

FUEL PUMP
Yes

OIL COOLER
No

OIL CAPACITY
48

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Remote

MAX RPM
3300

CHARGING SYSTEM
16

BOLT CIRCLE
10″

FLYWHEEL
Heavy
