Briggs Stratton 386447 3048 G1 Horizontal Engine

Briggs Stratton 386447 3048 G1 Horizontal Engine

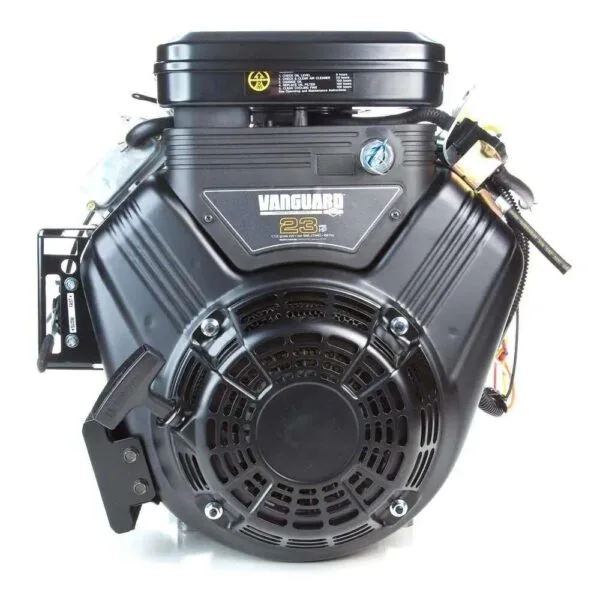

Briggs Stratton 386447-3048-G1 horizontal Vanguard engine is 627cc and puts out 23.0 HP (maximum horsepower). This V-Twin Vanguard has a 1-1/8″ x 4″ crankshaft with a 1/4″ keyway.

BRAND
Briggs Stratton

MODEL NUMBER
386447-3048-G1

REPLACES MODELS
386447-0172-E1, 386447-0142-E1, 386447-0135-E1, 386447-0121-E1, 386447-0120-E1, 381447-0261-E1, 381447-0257-E1, 381447-0255-E1, 381447-0136-E1, 381447-0134-E1, 381447-0048-E2, 380447-0175-E1, 380447-0173-E1, 380447-0163-E1, 380447-0154-E1, 380447-0153-E1, 380447-0151-E1, 380447-0143-E1, 380447-0137-E1, 380447-0136-E1, 380447-0119-E1, 380447-0118-E1, 380447-0075-E1, 380447-0048-E1, 380447-0024-E1, 386447-3048.

WARRANTY
3 Year Consumer & Commercial

SHIPPING WEIGHT
98

DISPLACEMENT
627cc

STARTER TYPE
Electric with Recoil Backup

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
1-1/8″ x 4″

CRANKSHAFT DIAMETER
1 -1/8″

CRANKSHAFT LENGTH
4″

CRANKSHAFT END TAPPED SIZE
7/16 – 20

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Ball

CYLINDERS
2

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Dual Element

FUEL TANK
No

FUEL PUMP
Yes

OIL COOLER
Yes

OIL CAPACITY
48

LOW OIL ALERT
Yes

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual and Remote

MAX RPM
3600

CHARGING SYSTEM
16

BOLT CIRCLE
5, 6-1/2, 7-3/4

FLYWHEEL
Heavy

PTO HEIGHT
5 – 1/4
