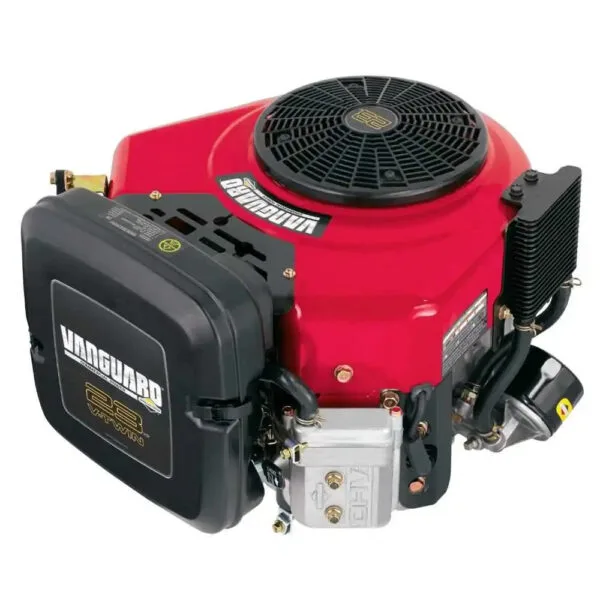

Briggs Stratton 386777 3036 G1 Vertical Engine

Briggs Stratton 386777 3036 G1 Vertical Engine Specs

BRAND
Briggs Stratton

MODEL NUMBER
386777-3036-G1

REPLACES MODELS
386777-0113-G1, 386777-0113-E1, 386777-0112-G1, 386777-0112-E1, 386777-0111-G1, 386777-0111-E1, 386777-0110-G1, 386777-0110-E1, 386777-0036-G1, 386777-0036-E1, 385777-0349-E1, 385777-0123-G1, 385777-0123-E1, 385777-0119-G1, 385777-0119-E1, 385777-0117-G1, 385777-0117-E1, 385777-0115-G1, 385777-0115-E1, 385777-0112-G1, 385777-0112-E1, 385777-0110-G1, 385777-0110-E1, 385777-0108-G1, 385777-0108-E1, 380777-0140-E1, 380777-0138-E1, 380777-0036-E1

WARRANTY
3 Years

SHIPPING WEIGHT
98

DISPLACEMENT
627cc

STARTER TYPE
Electric

CRANKSHAFT ORIENTATION
Vertical

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
1″ x 3-5/32″

CRANKSHAFT LENGTH
3-5/32″

CRANKSHAFT END TAPPED SIZE
7/16 – 20

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Dual Ball

CYLINDERS
2

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Dual Element

FUEL TANK
No

FUEL PUMP
Yes

OIL COOLER
Yes

OIL CAPACITY
48

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Remote

MAX RPM
3300

CHARGING SYSTEM
16

BOLT CIRCLE
10″

FLYWHEEL
Heavy
