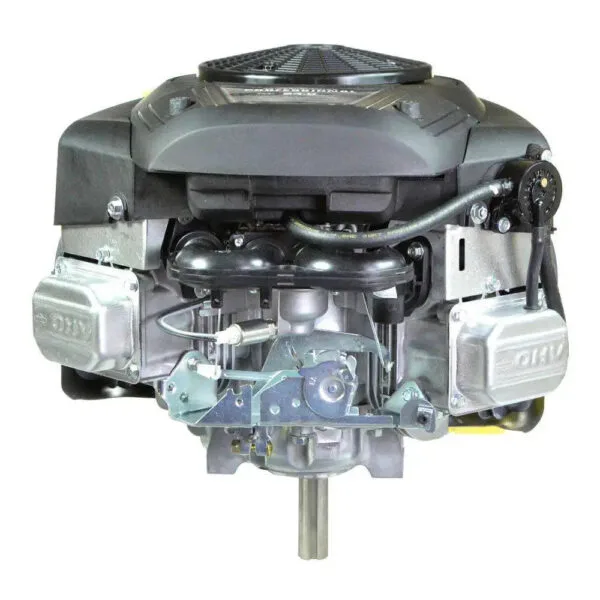

Briggs Stratton 44S977 0033 G1 724cc 24 Gross HP Engine Replaces 44S877 0001 G1

Briggs Stratton 44S977 0033 G1 724cc 24 Gross HP Engine Replaces 44S877 0001 G1 Specs

BRAND
Briggs Stratton

MODEL NUMBER
44S877-0001-G1

REPLACES MODELS
44Q777-0136, 44Q777-0136-G1, 44Q777-0016-G1, 44Q777-0006-G1, 44P777-0016-G1, 44P777-0016-E1, 44Q777-0036, 44L777-0026, 44L777-0026-G1, 44K777-0026-G1, 44K777-0026-E1, 445577-0864-E1, 445577-0864-B1, 441777-0788-E1, 441777-0788-B1, 441777-0722-E1, 441677-0112-E1, 441677-0112-B1, 40H777-0241-E2, 40H777-0241-E1, 40H777-0241-B1, 40H777-0117-G1, 40H777-0026-E1, 407777-0218-E1, 407777-0171-E1, 407777-0171-B1, 407777-0122-E3, 407777-0122-E2, 407777-0122-E1, 407777-0120-E1, 405777-0112-E1, 44Q777-0126, 44Q777-0136, 44Q777-3136, 44Q777-3136-G5, 44Q777-3136

WARRANTY
2 Years

SHIPPING WEIGHT
84

DISPLACEMENT
724cc

STARTER TYPE
Electric

CRANKSHAFT ORIENTATION
Vertical

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
1.125″ x 4-5/16″

CRANKSHAFT LENGTH
4-5/16″

CRANKSHAFT END TAPPED SIZE
7/16 – 20

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
High Radial Load PTO

CYLINDERS
2

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Cartridge with Pre Filter

FUEL TANK
No

FUEL PUMP
Yes

OIL COOLER
No

OIL CAPACITY
64

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Choke-A-matic

MAX RPM
3300

CHARGING SYSTEM
16

BOLT CIRCLE
10″

FLYWHEEL
Heavy
