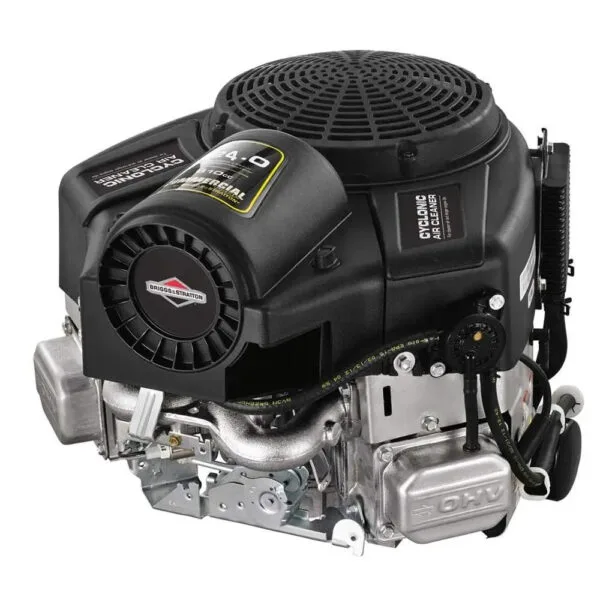

Briggs Stratton 44T877 0001 G1 Vertical Engine Replaces 44Q977 0037 G5

Briggs Stratton 44T877 0001 G1 Vertical Engine Replaces 44Q977 0037 G5 Specs

BRAND
Briggs Stratton

MODEL NUMBER
44T877-0001-G1

REPLACES MODELS
613477-0137-E1, 613477-0125-E1, 613477-0123-E1, 613477-0122-E1, 613477-0120-E1, 613477-0113-E1, 613477-0048-E1, 611477-0111-E1, 611477-0110-E1, 613477-0048, 44Q977-00037-G5, 44Q977-0037

WARRANTY
2 Years

SHIPPING WEIGHT
94

DISPLACEMENT
724cc

STARTER TYPE
Electric

CRANKSHAFT ORIENTATION
Vertical

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
1″ x 3-5/32″

CRANKSHAFT LENGTH
3-5/32″

CRANKSHAFT END TAPPED SIZE
7/16 – 20

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
High Radial Load PTO

CYLINDERS
2

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Cyclonic Filter

FUEL TANK
No

FUEL PUMP
Yes

OIL COOLER
Yes

OIL CAPACITY
64

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Choke-A-matic

MAX RPM
3300

CHARGING SYSTEM
16

BOLT CIRCLE
10″

FLYWHEEL
Heavy
