Briggs Stratton 613477 2194 G1 Horizontal Engine

Briggs Stratton 613477 2194 G1 Horizontal Engine

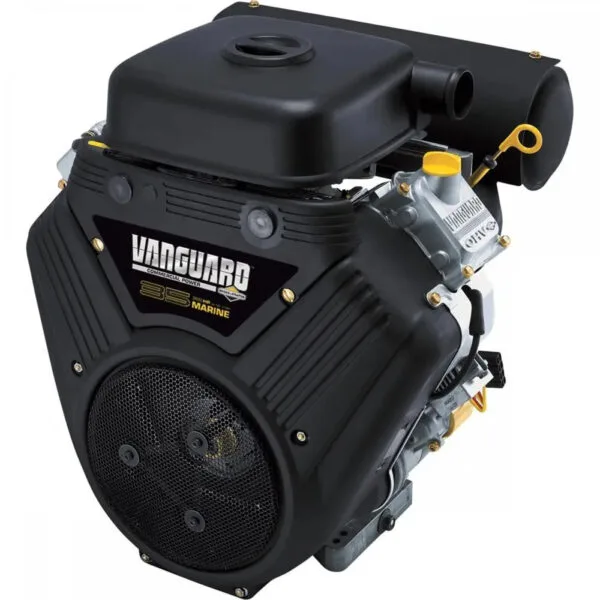

Briggs Stratton 613477-2194-G1 horizontal Vanguard engine is 993cc and puts out 35.0 HP (maximum horsepower). This V-Twin Vanguard has a 1-1/8″ x 4″ crankshaft and is designed for marine applications only.

BRAND
Briggs Stratton

MODEL NUMBER
613477-2194-G1

WARRANTY
3 Year Consumer & Commercial

SHIPPING WEIGHT
149

DISPLACEMENT
993cc

STARTER TYPE
Electric

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

CRANKSHAFT DIMENSIONS
4.5″ x 4″

CRANKSHAFT LENGTH
4″

CRANKSHAFT END TAPPED SIZE
7/16 – 20

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
High Radial Load PTO

CYLINDERS
2

CYLINDER BORE TYPE
Cast Iron

AIR CLEANER TYPE
Dual Element

FUEL TANK
No

FUEL PUMP
Yes

OIL COOLER
Yes

LOW OIL ALERT
Yes

LOW OIL SHUTDOWN
Yes

IGNITION SYSTEM
Digital CDI with Variable Timing

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual

CHARGING SYSTEM
20

BOLT CIRCLE
5″, 6-1/2″, 7-3/4″

FLYWHEEL
Heavy

PTO HEIGHT
6 – 1/8
