Briggs Stratton 83132 1035 F1 Horizontal Engine

Briggs Stratton 83132 1035 F1 Horizontal Engine

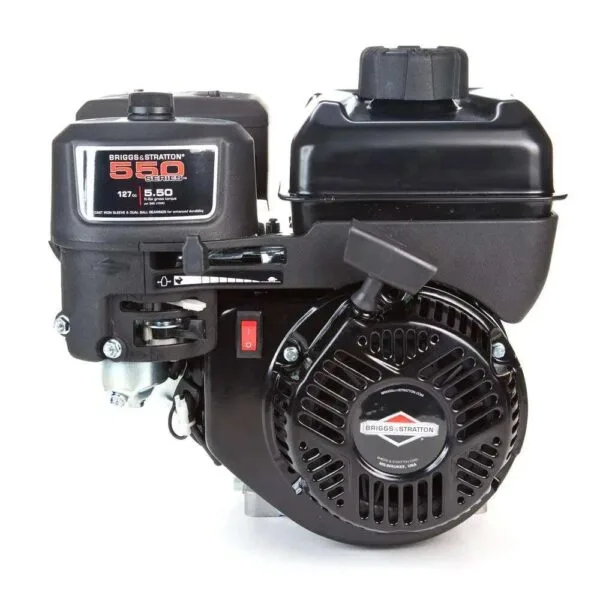

Briggs Stratton 83132-1035-F1 horizontal 550 Series engine is 127cc and puts out 5.50 gross torque. This OHV utility engine has a 3/4″ x 2-27/64″ crankshaft. It has a recoil start and is equipped with a muffler.

BRAND
Briggs Stratton

MODEL NUMBER
83132-1035-F1

WARRANTY
2 Year

SHIPPING WEIGHT
35

DISPLACEMENT
127cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
3/4″ x 2-27/64″

CRANKSHAFT DIAMETER
3/4″

CRANKSHAFT LENGTH
2-27/64″

CRANKSHAFT END TAPPED SIZE
5/16 – 24

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Ball

CYLINDERS
1

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Dual Element

FUEL TANK
Yes

OIL COOLER
No

OIL CAPACITY
20

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual

MAX RPM
3600

CHARGING SYSTEM
None

FLYWHEEL
Heavy

PTO HEIGHT
4 – 11/64
