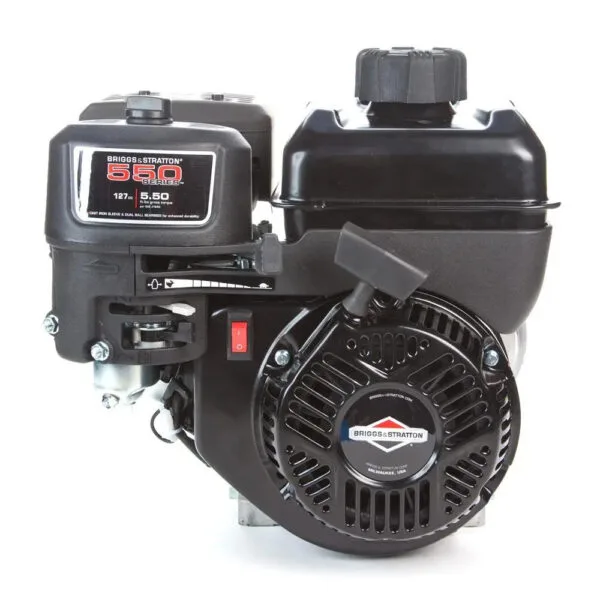

Briggs Stratton 83152 1049 F1 Horizontal Engine

Briggs Stratton 83152 1049 F1 Horizontal Engine
Briggs Stratton 83152-1049-F1 horizontal XR Professional engine is 127cc and puts out 5.5 gross torque. This XR has a 3/4″ x 2″ crankshaft with 6:1 counter-clockwise gear reduction.

BRAND
Briggs Stratton

MODEL NUMBER
83152-1049-F1

REPLACES MODELS
83152-0049-B1

WARRANTY
2 Year

SHIPPING WEIGHT
30

DISPLACEMENT
127cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight, Gear Reduction

FUEL SYSTEM
Gasoline

GEAR REDUCTION
6:01

CRANKSHAFT DIMENSIONS
3/4″ x 2″

CRANKSHAFT DIAMETER
3/4″

CRANKSHAFT LENGTH
2″

CRANKSHAFT END TAPPED SIZE
1/4 – 28

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Ball

CYLINDERS
1

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Dual Element

FUEL TANK
Yes

FUEL PUMP
No

OIL COOLER
No

OIL CAPACITY
20

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual

MAX RPM
3600

CHARGING SYSTEM
None

BOLT CIRCLE
3-5/8″

FLYWHEEL
Heavy

PTO HEIGHT
4 – 11/64
