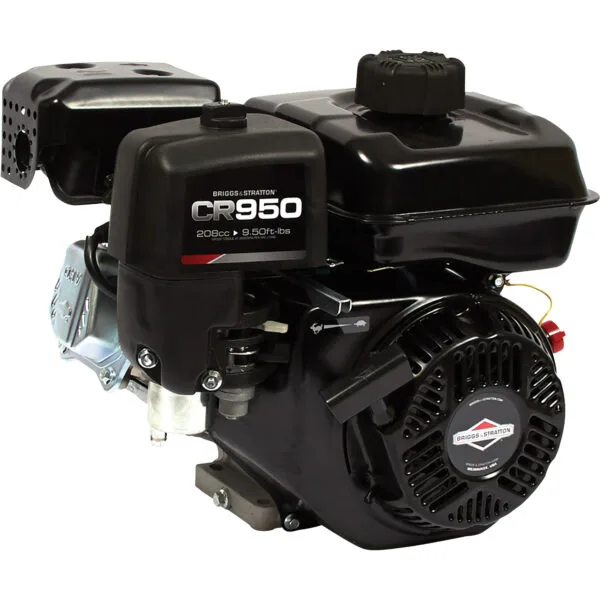

Briggs Stratton 950 CR Series OHV Horizontal Engine

Briggs Stratton 950 CR Series OHV Horizontal Engine

Brand
Briggs Stratton

Manufacturer’s Warranty
2 Year

Ship Weight
38.0 lbs

Engine Displacement
208 cc

Engine Type
950 CR Series OHV

Start Type
Recoil

Shaft Diameter
3/4 in

Shaft Length
2.43 in

Shaft Output
Horizontal

Shaft Keyway
0.18 in

Shaft End Tapped (Diameter (in.)/Threads per inch)
5/16-24

Shaft Rotation (From PTO Shaft Side)
Counterclockwise

Crankshaft
Horizontal

PTO Height
4.17 in

Bearing Type
Dual ball

Cylinders (qty.)
1

Cooling System
Air cooled

Bore
2.68 in

Stroke
2.2 in

Air Cleaner Type
Pleated paper w/foam pre-cleaner

Fuel Tank
Yes

Fuel Type
Gasoline

Fuel Tank Capacity
3.2 qt

Fuel Filter
No

Oil Capacity
0.6 qt

Low Oil Alert
Low oil sensor

Low Oil Shutdown
Low oil sensor

Lubrication System
Dura-Lube splash

Ignition System
Magnetron, maintenance-free electronic

Governor System
Mechanical

Carburetor
Float-type

Throttle Control
Mechanical friction, remote

Choke Control
Manual

Max. RPM
3,300

Muffler Included
Yes

Auto Compression Release
Yes

CARB Approval
Yes

Product Weight
38 lb

Dimensions L x W x H (in.)
11.4 x 14.66 x 13.2 in
