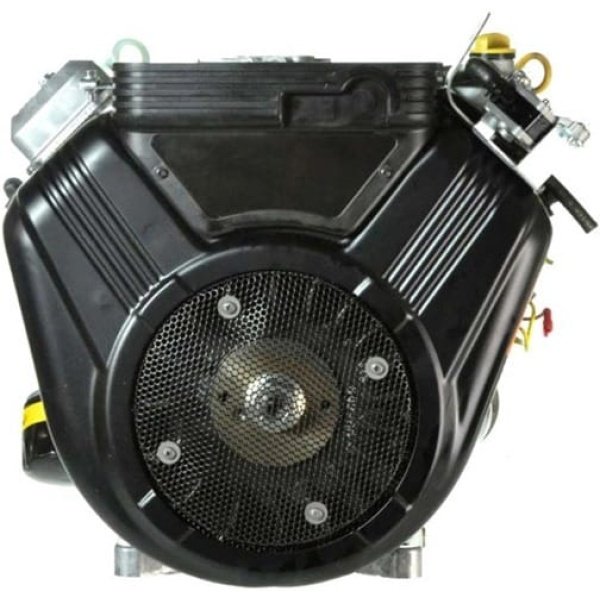

Briggs Stratton Horizontal Engine 305447 0265 G2

Briggs Stratton Horizontal Engine 305447 0265 G2
The Briggs & Stratton 305447 0265 G2 is a 344cc, single-cylinder, air-cooled, 4-stroke, horizontal-shaft engine designed for various outdoor equipment. Producing 11.5 horsepower, it is commonly used in equipment like lawn mowers, pressure washers, and small generators.

BRAND
Briggs Stratton

MODEL NUMBER
305447-0265-G2

REPLACES MODELS
294447-1224-A1, 294447-1213-E1, 294447-1213-A1, 294447-1204-E1, 294447-1204-A1, 294447-1187-E1, 294447-1187-A1, 294447-1183-E1, 294447-1183-A1, 294447-1182-A1, 294447-1173-A1, 294447-1170-A1, 294447-1165-E9, 294447-1165-E1, 294447-1165-A1, 294447-1151-A1, 294447-1142-A1, 294447-1132-A1, 294447-1131-A1, 294447-1130-A1, 294447-1122-E9, 294447-1122-E1, 294447-1122-A1, 294447-1118-A1, 294447-1117-A1, 294447-1116-A1, 294447-1076-A1, 294447-1056-E1, 294447-1056-A1, 294447-1054-A1, 294447-1029-A1, 294447-1014-A1, 294447-1013-A1, 294447-0432-01, 294447-0430-01, 294447-0422-01, 294447-0418-01, 294447-0417-01, 294447-0376-01, 294447-0354-01, 294447-0314-01, 294447-0313-01, 294447-0107-01, 294446-1211-E1, 294446-1211-A1, 294442-1085-E1, 294442-1085-A1, 294442-1060-A1, 294442-0480-01, 294442-0479-01, 290447-1160-A1, 290447-1153-A1, 290447-1152-A1, 290447-1137-A1, 290447-1094-A1, 290447-1076-A1, 290447-1074-A1, 290447-1073-A1, 290447-0502-01, 290447-0460-01, 290447-0453-01, 290447-0452-01, 290447-0444-01, 290447-0442-01, 290447-0441-01, 290447-0440-99, 290447-0439-01, 290447-0437-01, 290447-0428-01, 290447-0423-01, 290447-0419-01, 290447-0418-01, 290447-0394-01, 290447-0376-01, 290447-0373-01, 290447-0358-01, 290447-0355-01, 290447-0354-01, 290447-0349-99, 290447-0328-99, 290447-0327-99, 290447-0316-99, 290447-0076-01, 290447-0073-99, 290447-0058-02, 290447-0058-01, 290447-0049-02, 290447-0049-01, 290447-0035-99, 290447-0035-01, 290447-0033-01, 290447-0032-99, 290447-0032-02, 290447-0032-01, 290446-1163-A1, 290446-1114-A1, 290446-0421-01, 290446-0407-01, 290446-0124-01, 290442-1147-A1, 303447-1323-E1, 303447-1323-E9

WARRANTY
3 Year Consumer & Commercial

SHIPPING WEIGHT
84

DISPLACEMENT
479cc

STARTER TYPE
Electric

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
1″ x 1-29/32″

CRANKSHAFT LENGTH
1-29/32″

CRANKSHAFT END TAPPED SIZE
3/8 – 24

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Ball

CYLINDERS
2

CYLINDER BORE TYPE
Cast Iron Sleeve

AIR CLEANER TYPE
Without Cleaner

FUEL TANK
Yes

FUEL PUMP
Yes

OIL COOLER
No

OIL CAPACITY
48

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual and Remote

MAX RPM
3200

CHARGING SYSTEM
16

BOLT CIRCLE
5, 6-1/2, 7-3/4

FLYWHEEL
Heavy

PTO HEIGHT
5 – 1/4
