Honda GC160 QHG Horizontal Engine Replaces Model GC160 QHA

Honda GC160 QHG Horizontal Engine Replaces Model GC160 QHA

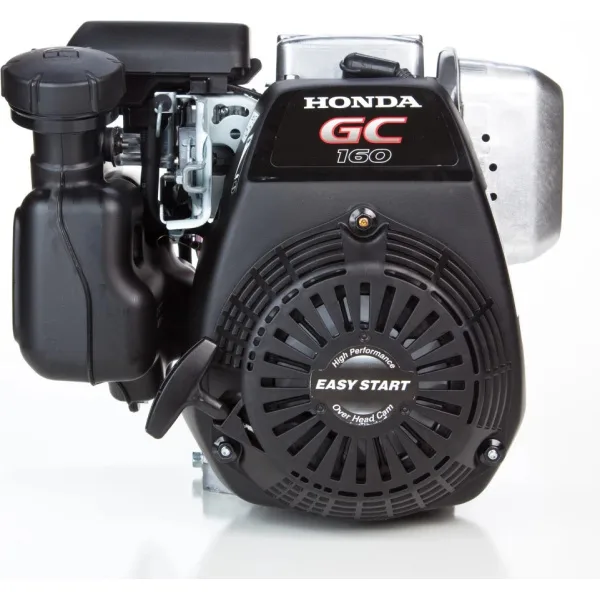

Honda GC160 QHG (GC160LAQHG) horizontal OHC engine is 160cc and puts out 5 HP. This Honda GC has a 3/4″ x 2-7/16″ crankshaft. The engine has a recoil starter and a standard muffler. GC160 QHG replaces model GC160 QHA.

BRAND
Honda

MODEL NUMBER
GC160-QHG

REPLACES MODELS
GC160LAQHA, GC160 LAQHA, GC160 QHA

WARRANTY
2 Years

SHIPPING WEIGHT
33

DISPLACEMENT
162cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
3/4″ x 2.44″

CRANKSHAFT DIAMETER
3/4″

CRANKSHAFT LENGTH
2.44″

CRANKSHAFT END TAPPED SIZE
5/16 – 24

CRANKSHAFT KEYWAY WIDTH
3/16″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

CYLINDERS
1

CYLINDER BORE TYPE
Aluminum Alloy

AIR CLEANER TYPE
Paper Element

FUEL PUMP
Yes

OIL COOLER
No

OIL CAPACITY
20

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Transistorized Magneto

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual

BOLT CIRCLE
3 – 5/8

PTO HEIGHT
4 – 11/64
