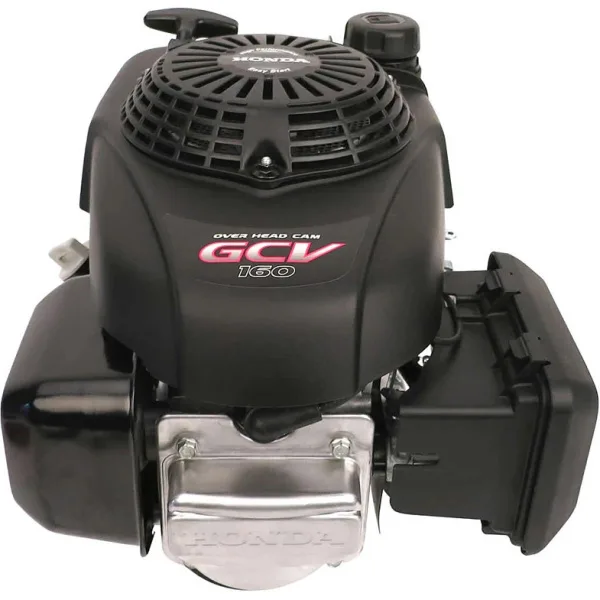

Honda GCV160 S3B Vertical Engine

Honda GCV160 S3B Vertical Engine Specifications:

Engine Type: Single-cylinder, air-cooled, 4-stroke, vertical-shaft
Displacement: 160cc
Horsepower: 4.4 HP (approximately)
Bore x Stroke: 2.56 x 1.97 inches (65 x 50 mm)
Compression Ratio: 8.5:1
Fuel System: Carburetor (fixed jet)
Fuel Type: Unleaded gasoline
Fuel Tank Capacity: 0.91 liters (30.8 oz)
Oil Capacity: 0.37 liters (12.5 oz)
Lubrication: Splash lubrication
Ignition System: Transistorized magneto ignition
Starting System: Recoil start
Cooling System: Air-cooled
Max. Engine Speed: 3,600 RPM
Governor Type: Mechanical
Dimensions (L x W x H): Compact design for easy integration into equipment
Dry Weight: 9.5 kg (20.9 lbs)
