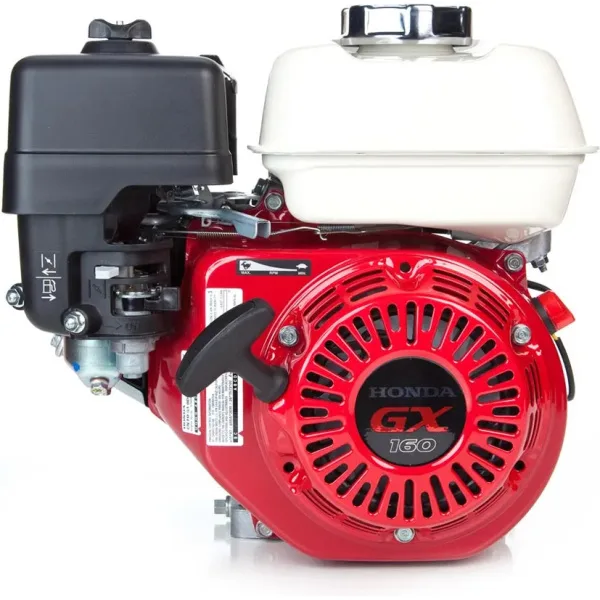

Honda GX160 QX2 Horizontal Engine

Honda GX160 QX2 Horizontal Engine
Honda GX160 QX2 (GX160UT2QX2) horizontal OHV engine is 160cc and puts out 4.8 net HP. This Honda GX has a 3/4″ x 2-7/16″ crankshaft with a 3/16″ Keyway (Tapped 5/16-24).

BRAND
Honda

MODEL NUMBER
GX160-QX2

REPLACES MODELS
GX160 QX2, GX160QX2, GX160UT2QX2, GX160T1QX2, GX160UT1QX2, GX160-UT1QX2, GX160-UT1-QX2, GX160K1-QX2, GX160-K1QX2, GX160-K1-QX2, GX160K1-QWX2, GX160-QMX2.

WARRANTY
3 Year Consumer & Commercial

SHIPPING WEIGHT
41

DISPLACEMENT
163cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
3/4″ x 2-27/64″

CRANKSHAFT DIAMETER
3/4″

CRANKSHAFT LENGTH
2-27/64″

CRANKSHAFT END TAPPED SIZE
5/16 – 24

CRANKSHAFT KEYWAY WIDTH
3/16″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Ball

CYLINDERS
1

CYLINDER BORE TYPE
Cast Iron

AIR CLEANER TYPE
Dual Element

FUEL PUMP
No

OIL COOLER
No

OIL CAPACITY
20

LOW OIL ALERT
No

LOW OIL SHUTDOWN
Yes

IGNITION SYSTEM
Transistorized Magneto

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual

BOLT CIRCLE
3 – 5/8

PTO HEIGHT
4 – 11/64
