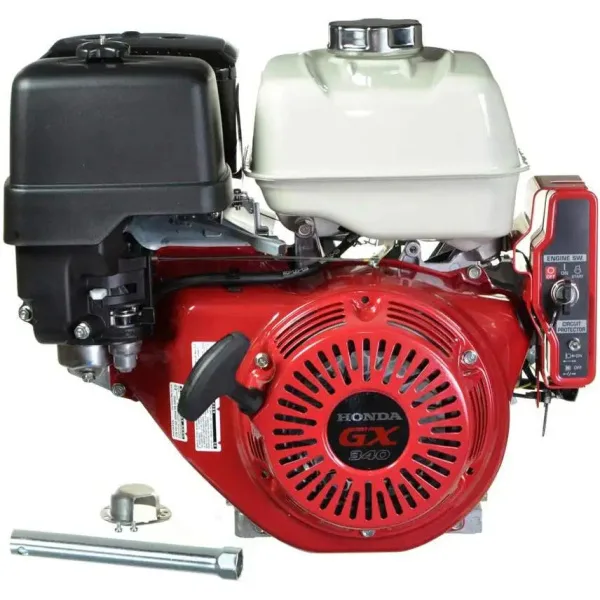

Honda GX340 QAE2 Horizontal Engine

Honda GX340 QAE2 Horizontal Engine
The Honda GX340 QAE2 is a 337cc, air-cooled, 4-stroke, horizontal-shaft engine that delivers 11 horsepower. It is commonly used in equipment like pressure washers, generators, and water pumps. Known for its reliability, fuel efficiency, and easy maintenance, the GX340 QAE2 provides consistent power for a wide range of commercial and industrial applications.

BRAND
Honda

MODEL NUMBER
GX340-QAE2

WARRANTY
3 Year Consumer & Commercial

SHIPPING WEIGHT
86

DISPLACEMENT
389cc

STARTER TYPE
Electric & Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
1″ x 3-31/64″

CRANKSHAFT LENGTH
3-31/64″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

BEARING TYPE
Ball

CYLINDERS
1

CYLINDER BORE TYPE
Cast Iron

AIR CLEANER TYPE
Dual Element

FUEL PUMP
No

OIL COOLER
No

OIL CAPACITY
1.16 qt

LOW OIL ALERT
Yes

IGNITION SYSTEM
Digital CDI with Variable Timing

CARBURETOR TYPE
Float

CHOKE CONTROL
Manual

PTO HEIGHT
5 – 1/4
