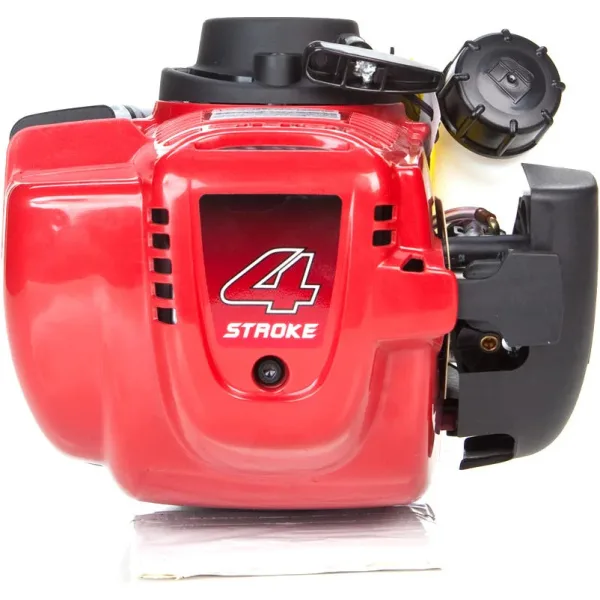

Honda GX35 S3 Horizontal Engine

Honda GX35 S3 Horizontal Engine
Honda GX35 S3 (GX35NTS3) mini 4-stroke OHC horizontal engine is 35cc and puts out 1.3 net HP. Honda Mini 4-Stroke engines are ultra lightweight but still efficiently deliver a surprising amount of quiet power.

BRAND
Honda

MODEL NUMBER
GX35-S3

WARRANTY
2 Years

SHIPPING WEIGHT
11

DISPLACEMENT
35.8cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
NA – Clutch Attached

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIAMETER
N/A

CRANKSHAFT LENGTH
N/A

CRANKSHAFT END TAPPED SIZE
N/A

CRANKSHAFT KEYWAY WIDTH
None

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

CYLINDERS
1

CYLINDER BORE TYPE
Aluminum Alloy

AIR CLEANER TYPE
Foam Element

FUEL PUMP
No

OIL COOLER
No

OIL CAPACITY
3.4

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Transistorized Magneto

CARBURETOR TYPE
Diaphragm

CHOKE CONTROL
Manual

MAX RPM
7000

BOLT CIRCLE
None
