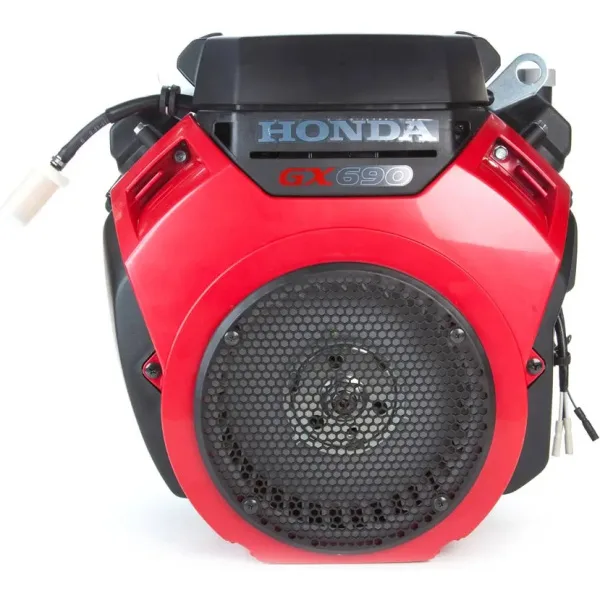

Honda GX690 TDW Horizontal Engine

Honda GX690 TDW Horizontal Engine
The Honda GX690 TDW is a 688cc, V-twin, air-cooled, 4-stroke, horizontal-shaft engine designed for heavy-duty commercial and industrial applications. Producing 20.8 horsepower, it is commonly used in equipment such as large generators, industrial pumps, and agricultural machinery.

BRAND
Honda

MODEL NUMBER
GX690-TDW

WARRANTY
3 Year Consumer & Commercial

SHIPPING WEIGHT
110

DISPLACEMENT
688cc

STARTER TYPE
Electric

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
1-1/8″ x 3.78″

CRANKSHAFT DIAMETER
1-1/8″

CRANKSHAFT LENGTH
3.78″

CRANKSHAFT END TAPPED SIZE
7/16 – 20

CRANKSHAFT KEYWAY WIDTH
1/4″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

CYLINDERS
2

CYLINDER BORE TYPE
Integrated

AIR CLEANER TYPE
Dual Element

FUEL PUMP
Yes

OIL COOLER
No

OIL CAPACITY
68

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Digital CDI with Variable Ignition Timing

CARBURETOR TYPE
Two Barrel Float Valve, Internal Vent

CHOKE CONTROL
Remote (Wire)

BOLT CIRCLE
5,6-1/2,7-3/4

PTO HEIGHT
5 – 1/4
