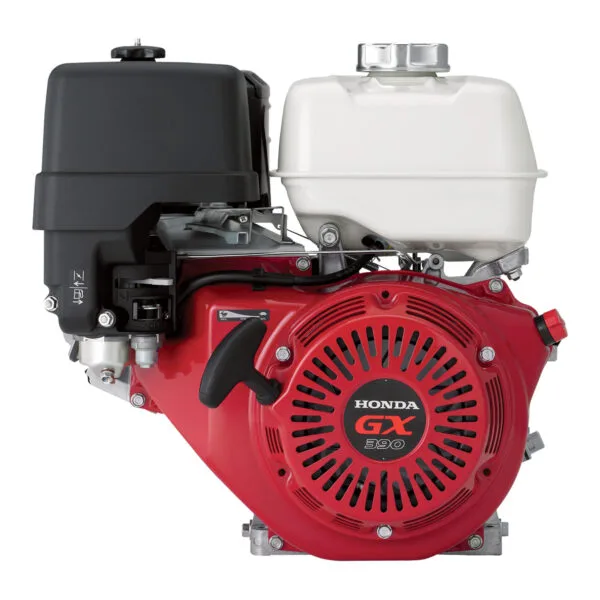

Honda Horizontal OHV Engine 389cc Model GX390UT2HA2

Honda Horizontal OHV Engine 389cc Model GX390UT2HA2

Brand
Honda Engines

Manufacturer’s Warranty
3 year limited warranty

Ship Weight
95.0 lbs

Engine Displacement
389 cc

Engine Type
GX Series OHV commercial-duty

Net Power Output
11.7 HP

Start Type
Recoil

Shaft Diameter
1 in

Shaft Length
3.23 in

Net Torque
19.5 ft-lbs.

Shaft Output
Horizontal

Shaft Rotation (From PTO Shaft Side)
Counterclockwise

Crankshaft
H-type

PTO Height
5.25 in

Cylinders (qty.)
1

Cylinder Bore
Cast iron

Compression Ratio
8.2:1

Cooling System
Air cooled

Bore
3.5 in

Stroke
2.5 in

Air Cleaner Type
Dual element

Fuel Tank
Yes

Fuel Type
Gasoline

Fuel Tank Capacity
6.4 qt

Fuel Filter
Fuel tank filler neck strainer

Oil Capacity
1.16 qt

Low Oil Alert
Yes

Low Oil Shutdown
Yes

Lubrication System
Splash

Ignition System
Electronic

Governor System
Centrifugal mechanical

Carburetor
Float, external vent

Throttle Control
Manual

Choke Control
Manual

Max. RPM
3,600

Muffler Included
Yes

Auto Compression Release
Yes

CARB Approval
No

Bolt Circle
5, 6.5 in

Mounting Base Length
7.68 in

Mounting Base Width
3.39 to 4.06 in

Dimensions L x W x H (in.)
15.87 x 17.68 x 17.37 in
