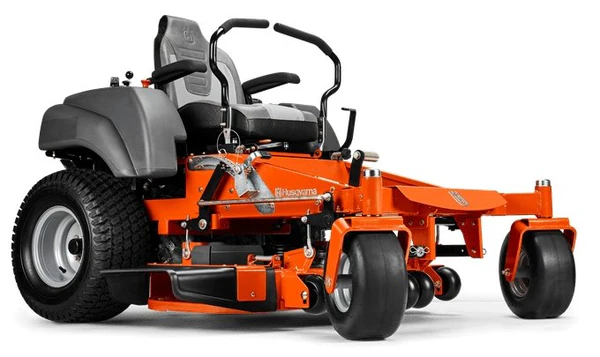

Husqvarna 48 in. MZ48 Heavy Duty Zero Turn

48″ Kawasaki FR691V Zero Turn Mower Specifications

Homeowner Warranty
4 years or 400 hours (whichever occurs first)

Commercial Warranty
4 years or 400 hours (whichever occurs first)

Speed Forward (Max)
8.5 mph / 13.7 km/h

Speed Forward (Min)
0 mph / 0 km/h

Cutting Width
48 in / 122 cm

Deck Type
ClearCut – Fabricated

Cutting Methods
Collect / Mulch / Side Discharge

Deck Material
Steel

Deck Thickness
10 gauge / 3 mm

Cutting Height Steps
13

Blade Engagement
Electric Clutch

Blades
3 pcs

Blade Tip Speed
18,500 fpm / 93.98 m/s

Anti-Scalp Wheels
4

Nose Roller
Yes

Deck Lifting System
Manual, Foot Assisted

Powder-Coated Deck
Yes

Spindle/Mandrel Type
Cast Aluminum

Greasable Mandrels
Yes

Deck Wash Port
Yes

Cutting Height Range
1.5 – 4.5 in / 38.1 – 114.3 mm

Length
81 in / 192 cm

Height
42 in / 107 cm

Width (Chute Down)
61 in / 154.9 cm

Width (Chute Up)
56 in / 142 cm

Weight
595 lbs / 269.89 kg

Front Tire Width
6 in

Front Tire Diameter
6.5 in

Front Rim Diameter
13 in

Transmission Type
Hydrostatic

Transmission Manufacturer
Hydro-Gear

Model
ZT 3100

Pump Displacement
10 cm³

Fan-Cooled Pumps
Yes

Manufacturer
Kawasaki

Model
FR691V (FR Series)

Power Output
23 HP

Displacement
726 cm³ / 44.2 cu.in.

Cylinders
2

Cooling
Air

Generator
15 A

Air Filter Type
Auto-Type Paper

Fuel Type
Gasoline

Lubrication
Full Pressure with Oil Filter

Oil Filter
Yes

Fuel Tank Volume
5 gal / 18.9 L

Fuel Tank Location
Side (Single)

Seat Type
High Back 21″ with Armrest

Seat Material
Vinyl

Seat Spring
Yes

Seat Back Height
High

Hour Meter
Digital with Pre-programmed Service Intervals

Cup Holder
Yes

Armrests
Hinged (Standard)
