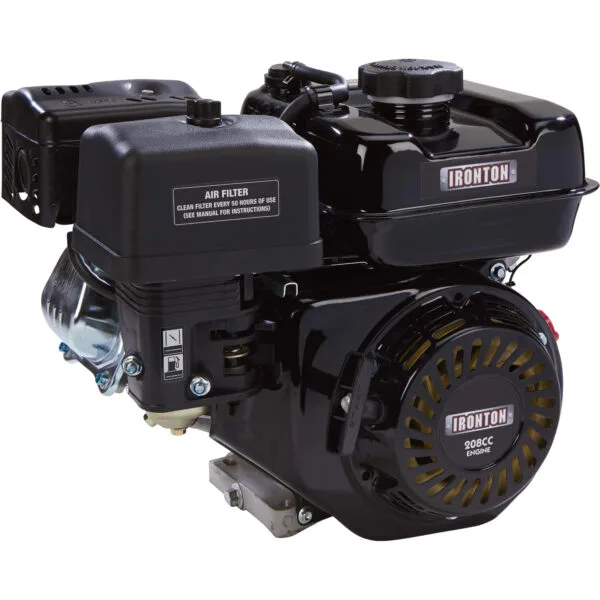

Ironton OHV Horizontal Engine 208cc 3 4in. 19.05mm x 2 19 64in. 58.5mm Shaft

Ironton OHV Horizontal Engine 208cc 3 4in. 19.05mm x 2 19 64in. 58.5mm Shaft

Brand
Ironton

Manufacturer’s Warranty
3 months parts / 3 months labor

Ship Weight
37.4 lbs

Engine Displacement
208 cc

Engine Type
OHV

Start Type
Recoil

Shaft Diameter
3/4 in

Shaft Length
2.29 in

Shaft Diameter Metric
19.05 mm

Shaft Length Metric
58.5 mm

Shaft Output
Horizontal

Shaft Keyway
0.19 in

Shaft Rotation (From PTO Shaft Side)
Counterclockwise

PTO Height
4.17 in

Cylinders (qty.)
1

Cylinder Bore
Cast iron

Cooling System
Air cooled

Air Cleaner Type
Pleated paper w/foam pre-cleaner

Fuel Tank Capacity
3.38 qt

Oil Capacity
0.5 qt

Low Oil Alert
Yes

Lubrication System
Splash

Ignition System
Electronic

Governor System
Mechanical

Carburetor
Float/choke

Max. RPM
3,800

Muffler Included
Yes

CARB Approval
No

Bolt Circle
3.625 in

Mounting Base Length
6.4 in

Mounting Base Width
3.07 in

Dimensions L x W x H (in.)
16.5 x 15 x 14.8 in
