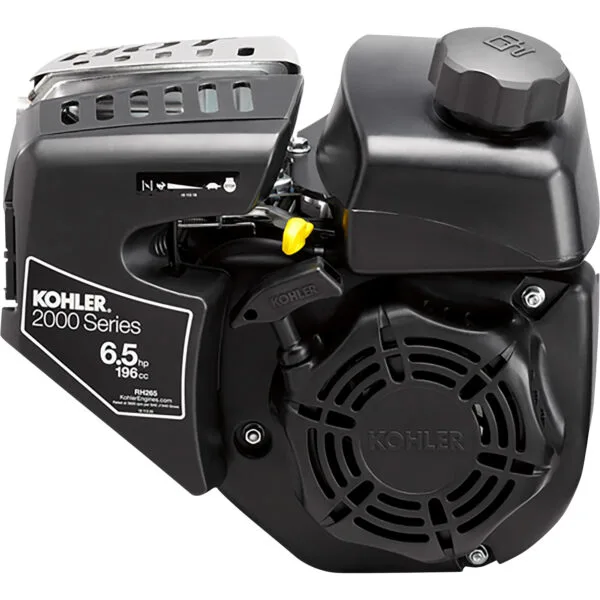

Kohler 2000 Series OHV Horizontal Engine 196cc 3 4in x 2 42in Shaft Model PARH2653103

Kohler 2000 Series OHV Horizontal Engine 196cc 3 4in x 2 42in Shaft Model PARH2653103

Brand
Kohler Engines

Manufacturer’s Warranty
2 Year

Ship Weight
33.0 lbs

Engine Displacement
196 cc

Engine Type
2000 Series OHV

Start Type
Recoil

Shaft Diameter
3/4 in

Shaft Length
2.42 in

Shaft Output
Counterclockwise

Shaft Keyway
0.18 in

Shaft End Tapped (Diameter (in.)/Threads per inch)
5/16-24 UNF 2B

Shaft Rotation (From PTO Shaft Side)
Counterclockwise

Crankshaft
Hardened

PTO Height
4.17 in

Bearing Type
Parent material

Cylinders (qty.)
1

Compression Ratio
8.5:1

Cooling System
Air cooled

Air Cleaner Type
Foam element

Fuel Tank
Yes

Fuel Type
Gasoline

Fuel Tank Capacity
2.21 qt

Fuel Filter
Yes

Oil Capacity
0.63 qt

Low Oil Alert
Yes

Low Oil Shutdown
Yes

Lubrication System
Splash

Ignition System
Electronic

Governor System
Mechanical

Carburetor
Choke style w/bowl drain

Throttle Control
Easy-access throttle, choke, shutoff

Choke Control
On engine

Max. RPM
3,600

Muffler Included
Yes

Auto Compression Release
Yes

CARB Approval
Yes

Bolt Circle
3.625 in

Mounting Base Length
6.378 in

Mounting Base Width
3.17 in

Dimensions L x W x H (in.)
13.03 x 13 x 12.87 in
