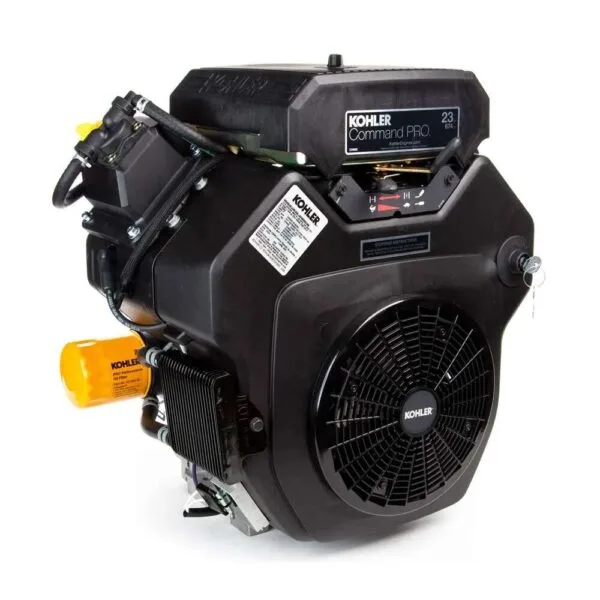

Kohler CH680 3091 Horizontal Engine

Kohler CH680 3091 Horizontal Engine
The Kohler CH680 3091 is a 674cc, V-twin, air-cooled, 4-stroke, horizontal-shaft engine that produces 23 horsepower. It is designed for heavy-duty commercial and industrial applications, including lawn mowers, large generators, and construction equipment.

BRAND
Kohler

MODEL NUMBER
PA-CH680-3091

WARRANTY
3 Year Consumer & Commercial

SHIPPING WEIGHT
107

DISPLACEMENT
674cc

STARTER TYPE
Electric

CRANKSHAFT ORIENTATION
Horizontal

FUEL SYSTEM
Gasoline

CRANKSHAFT DIMENSIONS
1-1/8″ x 2-13/16″

CRANKSHAFT DIAMETER
1-1/8″

CRANKSHAFT LENGTH
2-13/16″

CRANKSHAFT KEYWAY WIDTH
1/4″

CYLINDERS
2

AIR CLEANER TYPE
Large Capacity Dual Element

FUEL PUMP
Yes

OIL COOLER
No

OIL CAPACITY
64

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CHOKE CONTROL
Remote

BOLT CIRCLE
5-5/8; 7-3/4
