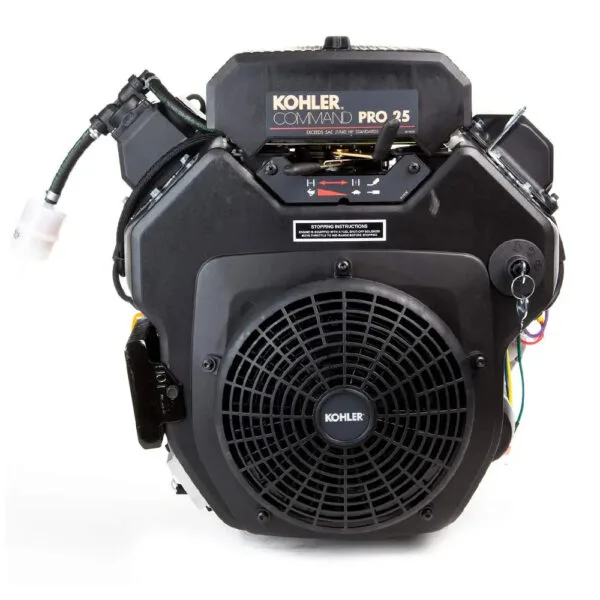

Kohler CH730 3201 Horizontal Engine

Kohler CH730 3201 Horizontal Engine
The Kohler CH730 3201 is a 725cc, V-twin, air-cooled, 4-stroke, horizontal-shaft engine that delivers 23 horsepower. It is designed for heavy-duty commercial applications, such as lawn mowers, utility vehicles, and industrial equipment.

BRAND
Kohler

MODEL NUMBER
CH730-3201

WARRANTY
3 Year Consumer & Commercial

SHIPPING WEIGHT
107

DISPLACEMENT
725cc

STARTER TYPE
Electric

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
1-1/8″ x 4″

CRANKSHAFT DIAMETER
1-1/8″

CRANKSHAFT LENGTH
4″

CRANKSHAFT END TAPPED SIZE
7/16 – 20

CRANKSHAFT KEYWAY WIDTH
1/4″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

CYLINDERS
2

CYLINDER BORE TYPE
Cast Iron

AIR CLEANER TYPE
Large Capacity Dual Element

FUEL PUMP
Yes

OIL COOLER
Yes

OIL CAPACITY
60

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
High Performance Accelerator Pump

CHOKE CONTROL
Manual and Remote

BOLT CIRCLE
5-5/8; 7-3/4

PTO HEIGHT
6 – 1/8
