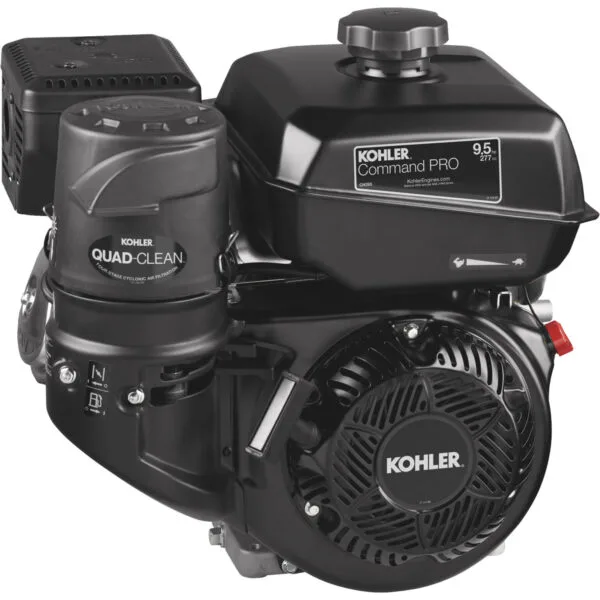

Kohler Command Pro OHV Horizontal Engine 277CC Model PACH3953149

Kohler Command Pro OHV Horizontal Engine 277CC Model PACH3953149
Kohler Command Pro OHV Horizontal Engine, 277cc Model PACH3953149, is a single-cylinder, air-cooled, 4-stroke engine designed for heavy-duty outdoor equipment.

Brand
Kohler Engines

Manufacturer’s Warranty
3 year limited warranty

Ship Weight
69.0 lbs

Engine Displacement
277 cc

Engine Type
OHV

Net Power Output
9.5 HP

Start Type
Recoil

Shaft Diameter
1 in

Shaft Length
3.49 in

Shaft Output
Horizontal

Shaft Keyway
0.25 in

Shaft End Tapped (Diameter (in.)/Threads per inch)
7/16-20 UNF

Shaft Rotation (From PTO Shaft Side)
Counterclockwise

Crankshaft
Hardened

PTO Height
5.25 in

Bearing Type
Ball

Cylinders (qty.)
1

Cylinder Bore
Cast iron liner

Compression Ratio
8.5:1

Cooling System
Air cooled

Bore
3.1 in

Stroke
2.3 in

Air Cleaner Type
Quad Clean cyclonic

Fuel Tank
Yes

Fuel Type
Gasoline

Fuel Tank Capacity
7.39 qt

Fuel Filter
(3) Fuel filters: fill neck, in tank, carburetor inlet

Oil Capacity
1.16 qt

Low Oil Alert
Yes

Low Oil Shutdown
Yes

Lubrication System
Splash

Ignition System
Electronic

Governor System
Mechanical

Carburetor
Float

Throttle Control
Engine-mounted

Choke Control
Easy access throttle, choke/shutoff

Max. RPM
3,600

Muffler Included
Yes

Auto Compression Release
Yes

CARB Approval
Yes

Bolt Circle
5, 6.5 in

Mounting Base Length
7.69 in

Mounting Base Width
3.78 in

Product Weight
69 lb

Dimensions L x W x H (in.)
15.9 x 16.8 x 16.7 in
