Kohler SH265 3011 Horizontal Engine

Kohler SH265 3011 Horizontal Engine

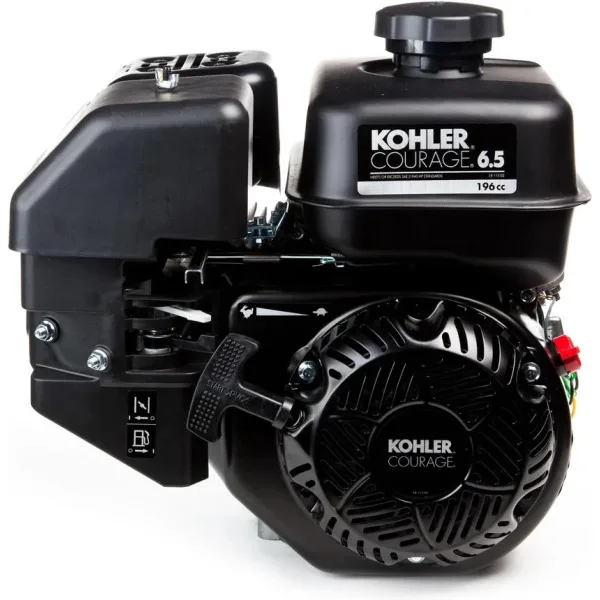

Kohler SH265-3011 horizontal single-cylinder Courage engine is 196cc and puts out 6.5 HP (maximum horsepower). This SH265 has a 3/4″ x 2.42″ crankshaft, an indexable recoil starter and a large capacity muffler with heat shield. It replaces model PA-SH265-0011.

BRAND
Kohler

MODEL NUMBER
SH265-3011

WARRANTY
2 Year Consumer / 90 Day Commercial

SHIPPING WEIGHT
40

DISPLACEMENT
196cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Horizontal

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

GEAR REDUCTION
No

CRANKSHAFT DIMENSIONS
3/4″ x 2.42″

CRANKSHAFT DIAMETER
3/4″

CRANKSHAFT LENGTH
2.42″

CRANKSHAFT END TAPPED SIZE
5/16 – 24

CRANKSHAFT KEYWAY WIDTH
3/16″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

CYLINDERS
1

CYLINDER BORE TYPE
Cast Iron

AIR CLEANER TYPE
Dual Element

FUEL PUMP
No

OIL COOLER
No

OIL CAPACITY
20

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Bowl

CHOKE CONTROL
Manual and Remote

BOLT CIRCLE
None

PTO HEIGHT
4 – 11/64
