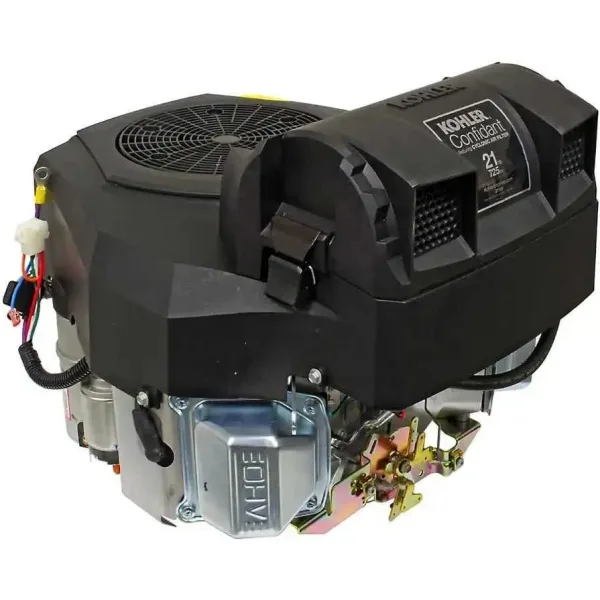

Kohler ZT720 3016 Vertical Engine

The Kohler ZT720 3016 is a 725cc, V-Twin, vertical-shaft engine designed for commercial-grade outdoor equipment like zero-turn mowers.

BRAND
Kohler

MODEL NUMBER
ZT720-3016

WARRANTY
3 Years

SHIPPING WEIGHT
91

DISPLACEMENT
725cc

STARTER TYPE
Recoil

CRANKSHAFT ORIENTATION
Vertical

CRANKSHAFT TYPE
Straight

FUEL SYSTEM
Gasoline

CRANKSHAFT DIMENSIONS
1″ x 3.16″

CRANKSHAFT DIAMETER
1″

CRANKSHAFT LENGTH
3.16″

CRANKSHAFT END TAPPED SIZE
7/16 – 20

CRANKSHAFT KEYWAY WIDTH
1/4″

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE)
Counterclockwise

CYLINDERS
2

CYLINDER BORE TYPE
Cast Iron

AIR CLEANER TYPE
Heavy Duty Canister

FUEL PUMP
Yes

OIL COOLER
No

OIL CAPACITY
64

LOW OIL ALERT
No

LOW OIL SHUTDOWN
No

IGNITION SYSTEM
Electronic

CARBURETOR TYPE
Float

CHOKE CONTROL
Remote

BOLT CIRCLE
10
