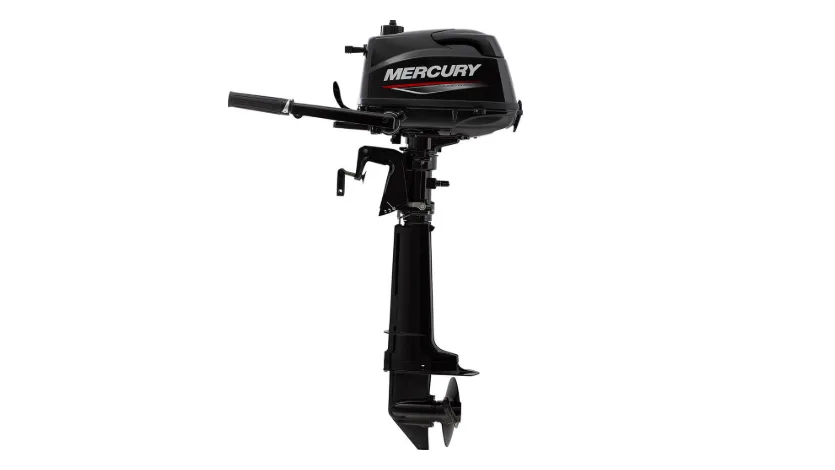

Mercury Sail Power 5HP Outboard Motor

Mercury 5HP Sail Power FourStroke Outboard Motor – Specifications

Feature
Description

Model
Mercury 5HP Sail Power FourStroke

Engine Type
4-Stroke, 1-Cylinder, OHV

Displacement
123 cc (7.5 cu. in.)

Horsepower
5 HP @ 5000–6000 RPM

Fuel System
Carbureted

Starting System
Manual Start

Controls
Tiller Handle with 360° steering

Shaft Length
20 inches (Long Shaft)

Steering
Tiller Steering

Gear Shift
F-N-R (Forward – Neutral – Reverse)

Gear Ratio
2.15:1

Cooling System
Water-cooled with thermostat

Alternator Output
5 Amps / 60 Watts with 12V Charging System

Fuel Tank
Internal (0.3 gallons / 1.1 L) + External Connection Capability

Dry Weight
59 lbs / 27 kg

Propeller
High-thrust 3-blade aluminum prop (8.5″ x 6″)

Trim & Tilt
6 manual positions

Exhaust
Through propeller hub

Color
Phantom Black

Special Features
Designed for sailboats, includes charging system and high-thrust propeller

Recommended Use
Sailboats, small displacement hulls

Warranty
3-Year Limited Factory Warranty

Certifications
EPA Compliant, CARB 3-Star Rated, CE Certified
