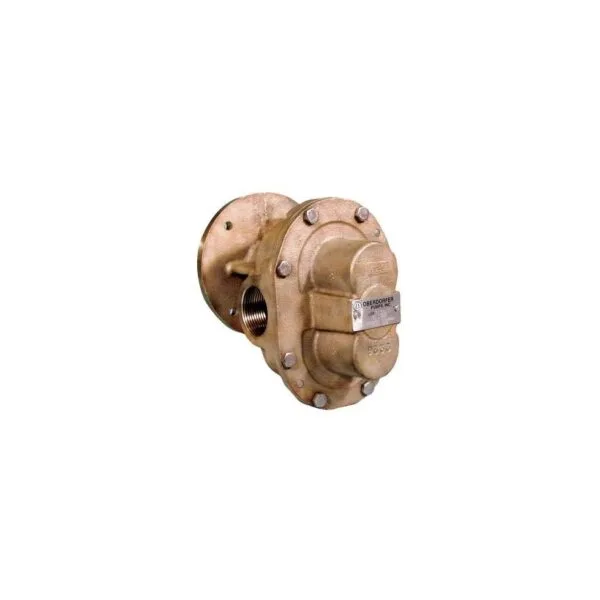

Oberdorfer N1100 Gear Pump

Oberdorfer N1100 Gear Pump

Product Details

Model
N1100

Brand
Oberdorfer

Pump Type
Positive Displacement Gear Pump

Flow Rate
Up to 3.4 GPM (12.9 LPM) @ 1725 RPM

Max Pressure
Up to 150 PSI (10.3 bar)

Rotation
Reversible (CW or CCW)

Inlet/Outlet Size
3/8″ NPT

Housing Material
Bronze

Gears
Bronze

Shaft Material
Stainless Steel

Seal Type
Mechanical Seal (Carbon-Ceramic)

Drive Type
Pedestal Mount

Max Liquid Temperature
212°F (100°C)

Viscosity Range
Up to 500 SSU (approx. 100 cSt)

Applications
Lubrication systems, fuel transfer, oil circulation, hydraulic fluids

Warranty
1-Year Limited Manufacturer Warranty
