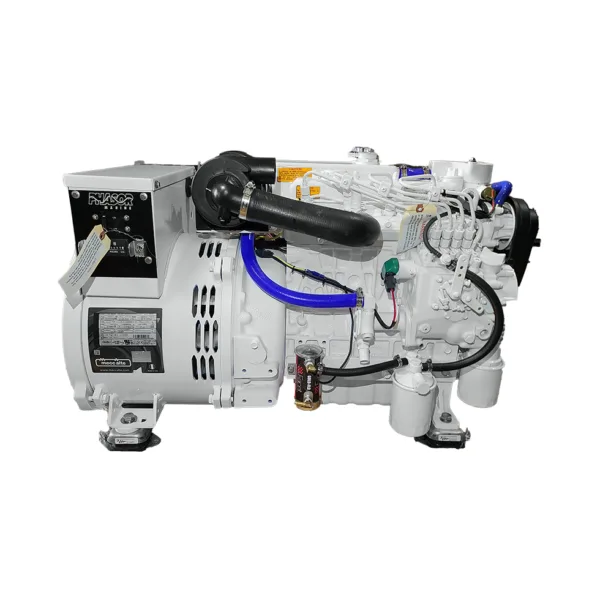

Phasor 9.5 kW Diesel Marine Generator – 9.5kW 60 Hz – 1800 RPM – Standard Series – K3-9.5kW

Specifications of Phasor 9.5 kW Marine Generator – K3-9.5kW

Kubota Model
D1105-E4BG

Number of Cylinders
3

Cubic Inch Displacement
68.5

KW Rating at 60 Hz
9.5 kw

KW Rating at 50 Hz
8.0 kw

Fuel Consumption ( Gal/Hr )
full load 0.76 Half Load 0.40

Electric End
Linz

Bore x Stroke
3.07″ x 3.09″

Dimensions (LxWxH) without enclosure
31.5″ x 18″ x 22.5″

 Dimensions (LxWxH) with enclosure
 35″ x 22″ x 25.5″

Weight (lbs.)
567

Output (volts)
120/240

 Output (amps)
80/40

Output (watts)
9,500 (9.5 KW) at 60 HZ / 8,000 (8.0 KW) at 50 HZ

 Exhaust Dia.
2.0″

Raw Water Dia.
3/4″

Fuel Line Dia.
5/16″

 Return Line Dia.
3/16″
