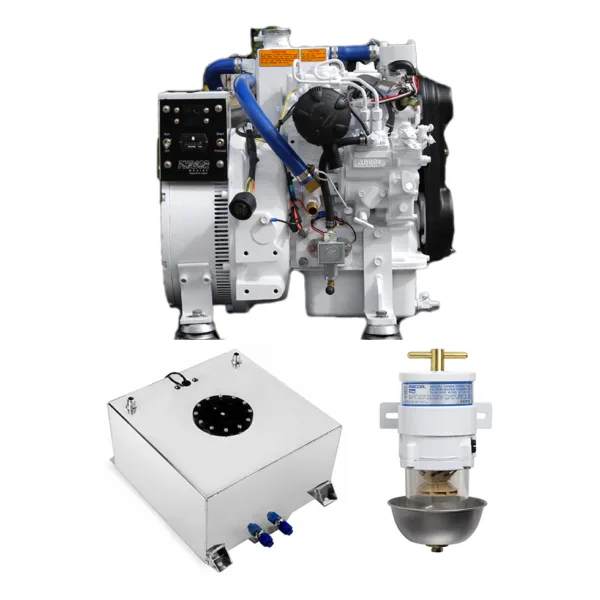

Phasor k2-4.5pmg-kit Marine Generator Includes Fuel Tank and Filter 4.5 KW 60 Hz – Ignition Protected

Phasor k2-4.5pmg-kit Marine Generator (Includes Fuel Tank and Filter) 4.5 KW (60 Hz) – Ignition Protected

Kubota Model
Z602-E4B

Number of Cylinders
2

Cubic Inch Displacement
36.55

KW Rating at 60 Hz
4.5

KW Rating at 50 Hz
3.5

Electric End
Coliseum

Bore x Stroke
2.83″ X 2.90″

Dimensions (LxWxH) without enclosure
20″ x 17″ x 22″

Dimensions (LxWxH) with enclosure
26″ x 20″ x 24.2″

Weight (lbs.)
294

Output (volts)
120/240

Output (amps)
38/19

Output (watts)
4500

Exhaust Dia.
2.0″

Raw Water Dia.
3/4″

Fuel Line Dia.
5/16″

Return Line Dia.
3/16″

Fuel Tank Specifications

Material
Aluminum

Tank Measures
16.5″ (L) x 16.5″ (W) x 9.25″ (H)

Sump Measures
6″ x 6″ x 2″ Deep

Capacity
10 Gal / 40L

Fuel Sender
0-90 Ohm

Anti-slosh Foam Included
Silver
