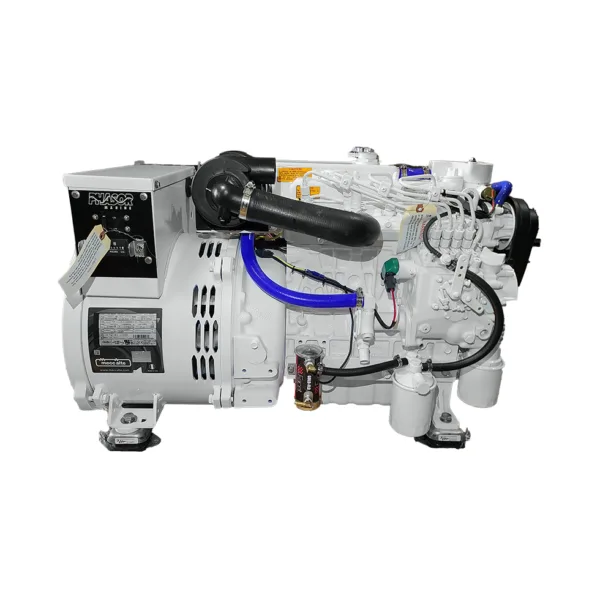

Phasor K3-14.0 kW Diesel Marine Generator – 14.0 kW 60 Hz – 1800 RPM – Standard Series

Phasor K3-14.0 kW Diesel Marine Generator – 14.0 kW (60 Hz) – 1800 RPM – Standard Series
Standard Features

Kubota Diesel Engine • Single bearing direct coupled brushless generator
 +/– 1% Solid-state voltage regulation
Low 1,800 RPM operating speed
Safety shutdown system for high coolant temperature or low lube oil pressure
Tinned wiring
Freshwater double pass heat exchanger
Water-cooled exhaust manifold with removable intergral Cupro-Nickel heat exchanger core
Zinc anode in heat exchanger
Stainless Steel exhaust elbow cast
Gear-driven raw water pump
4-Point isolation mounts S/S
Molded blue silicone water hoses with Stainless Steel AWAB clamps • Air intake Cleaner / Silencer
Spin-on lube filter
Secondary 5 Micron fuel filter
Self-bleed fuel system
USCG approved fuel lines
Electric fuel transfer pump
Forged brass oil drain valve with safety lock
Awl-Craft 2000 urethane finish
Circuit breaker – main line
Belt guard
5-Year Limited Warranty

Specifications

Kubota Model
D1503-M-E4BG

Number of Cylinders
3

KW Rating at 60 Hz
14.0 Kw

KW Rating at 50 Hz
11.5 Kw

Cubic Inch Displacement
91.47

Fuel Consumption ( Gal/Hr )
full load 0.76 Half Load 0.40

Electrical End
Linz

Bore x Stroke
3.27 x 3.64″

Dimensions (LxWxH) without enclosure
34.5 x 21 x 26″

 Dimensions (LxWxH) with enclosure
37.5 x 24 x 28″

Weight (lbs.)
685

Output (volts)
120/240

 Output (amps)
116.6/58.3

Output (watts)
14,000

 Exhaust Dia.
2.0″

Raw Water Dia.
1″

Fuel Line Dia.
5/16″

 Return Line Dia.
3/16″
