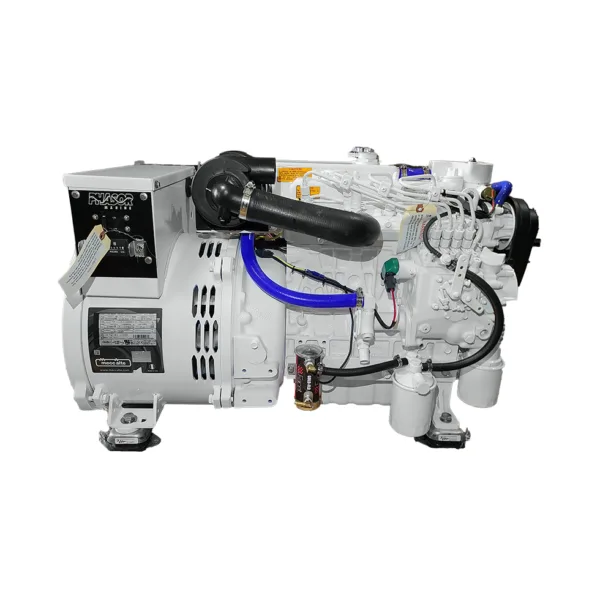

Phasor K3-8.5kW Diesel Marine Generator – 8.5 kW 60 Hz – 1800 RPM – Standard Series

Phasor K3-8.5kW Diesel Marine Generator – 8.5 kW (60 Hz) – 1800 RPM Specifications

Kubota Model
D1005-E4BG

Number of Cylinders
3

Cubic Inch Displacement
61

8.5 Kw
60 Hz

7.0 Kw
50 Hz

Fuel Consumption ( Gal/Hr )
Full Load 0.70 Half Load 0.37

Electric End
Linz

Bore x Stroke
 2.99″ x 2.90″

Dimensions (LxWxH) without enclosure
31.5″ x 18″ x 22.5″

 Dimensions (LxWxH) with enclosure
 35″ x 22″ x 25.5″

Weight (lbs.)
567

Output (volts)
120/240

 Output (amps)
70/35

Output (watts)
8,500 (8.5 KW) at 60 HZ – 7,000 (7.0 KW) at 50 HZ

 Exhaust Dia.
2.0″

Raw Water Dia.
3/4″

Fuel Line Dia.
5/16″

 Return Line Dia.
3/16″
