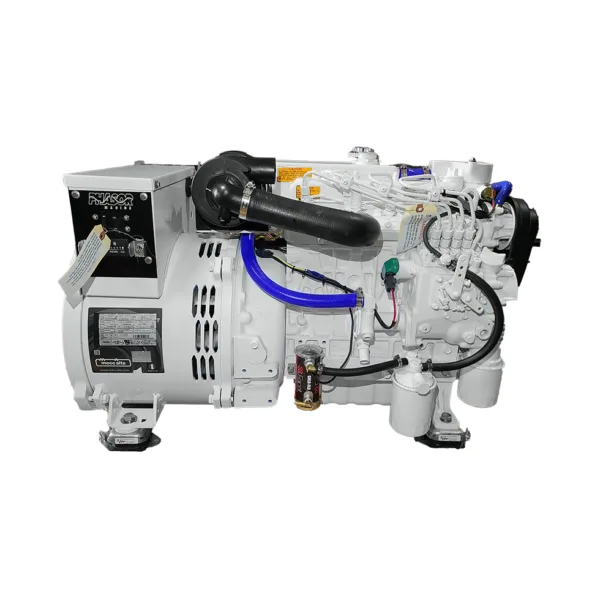

Phasor K4-12.5kW – 12.5kW 60 Hz Marine Diesel Generator – 1800 RPM – Standard Series

Phasor K4-12.5kW – 12.5kW (60 Hz) Marine Diesel Generator – 1800 RPM Specifications

Kubota Model
V1505-E4BG

Number of Cylinders
4

KW Rating at 60 Hz
12.5 Kw

KW Rating at 50 Hz
10.5 Kw

Cubic Inch Displacement
91

Fuel Consumption ( Gal/Hr )
Full Load 1.03 Half Load 0.62

Electric End
Linz

Bore x Stroke
3.07″ x 3.09″

Dimensions (LxWxH) without enclosure
34.5″ x 18″ x 22.5″

Dimensions (LxWxH) with enclosure
 38″ x 22″ x 25.5″

Weight (lbs.)
567

R.P.M
1800

Output (volts)
120/240

Output (amps)
104/52

Output (watts)
12,500 (12.5 KW) at 60 HZ – 10,500 (10.5KW) at 50 HZ

 Exhaust Dia.
2.0″

Raw Water Dia.
3/4″

Fuel Line Dia.
5/16″

 Return Line Dia.
3/16″
