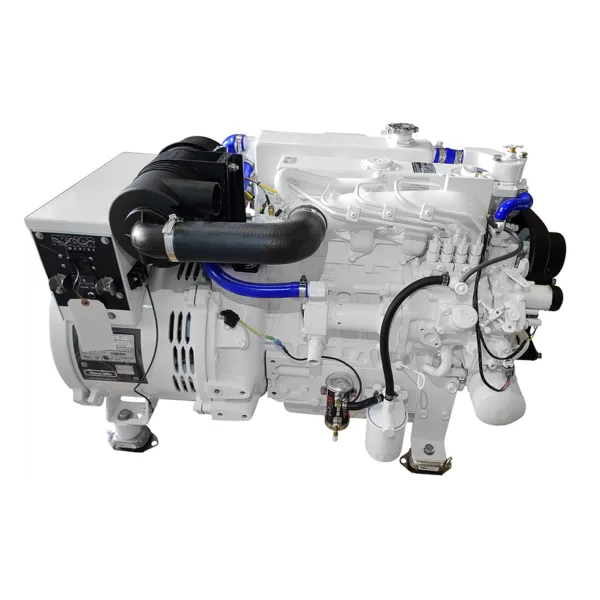

Phasor K4-21.0kW Diesel Marine Generator – 21.0kW 60 Hz – 1800 RPM – Standard Series

Phasor K4-21.0kW Diesel Marine Generator – 21.0kW (60 Hz) – 1800 RPM – Standard Series Specifications

Model
V2403-M-E4BG

Number of cylinders
4

KW Rating at 60 Hz
21.0 Kw

KW Rating at 50 Hz
17.5 Kw

Cubic Inch Displacement
148.5

Fuel Consumption ( Gal/Hr )
Full Load 1.48 Half Load 0.90

Electric End
Linz

Bore x Stroke
3.43″ X 3.64″

Dimensions (LxWxH) without enclosure
39.5″ x 21″ x 26″

Dimensions (LxWxH) with enclosure
43″ x 24″ x 28″

Weight (lbs.)
776

Output (volts)
120/240

Output (amps)
175/87.5

Output (watts)
21,000 (21KW) at 60HZ / 17,500 (17.5KW) at 50HZ

Exhaust Dia.
2.0″

Raw Water Dia.
1.0″

Fuel Line Dia.
5/16″

Return Line Dia.
3/16″
